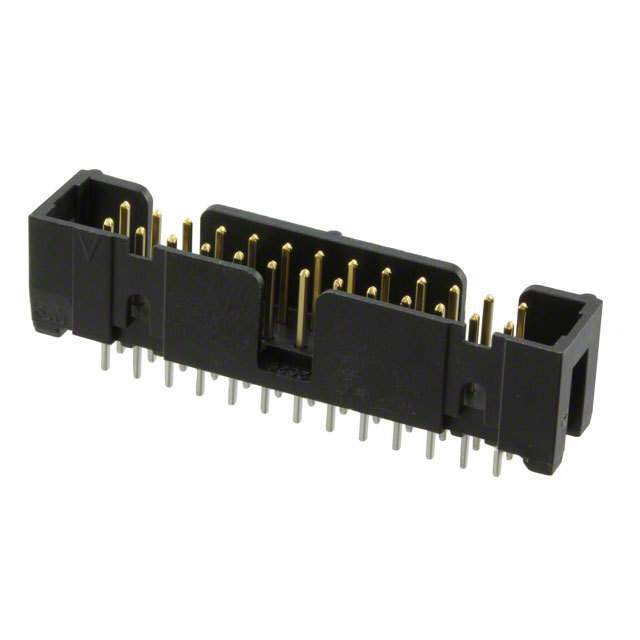

N2526-6002-RB 3M
Same model may have multiple batches, images only for reference.

N2526-6002-RB

Part No N2526-6002-RB
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER 26 POS STRGHT GOLD / Conn Shrouded Header (4 Sides) HDR 26 POS 2.54mm Solder ST Top Entry Thru-Hole
Datasheet
N2526-6002-RB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Series 2500
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 26
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.243" (6.17mm)
Contact Length - Post 0.112" (2.84mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features Keying Slot
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1.75A
Contact Finish Thickness - Post 200μin (5.08μm)
Win Source Part Number 790414-N2526-6002-RB
Popularity Medium
Supply and Demand Status Limited
Family Name 2500
Introduction Date November 07, 2008
ECCN EAR99
Country of Origin United States of America
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian N2526-6002-RB CAD Model

Description

The 3M 2500 series header connector is a board-to-board or cable connector that has a 2 x 13 position configuration.

  • Configuration: 2 x 13
  • Style: shrouded 4-wall
  • Mounting Type: through-hole
  • Fastening Type: push-pull
  • Contact Type: male pin
  • Contact Material: copper alloy
  • Insulation Material: polycyclohexylenedimethylene terephthalate (PCT), polyester, and glass-filled
  • Operating Temperature: -55°C to 105°C
  • Current Rating: 1.75A
  • Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: gold, 30μin (0.76μm)
  • Contact Finish-Post: tin, 200μin (5.08μm)

The 3M 2500 series connector is ideal for use in various electronic applications.
