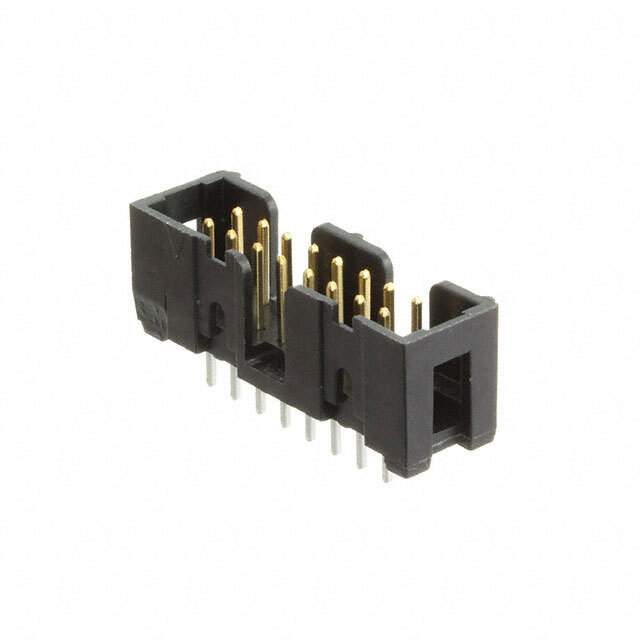

Same model may have multiple batches, images only for reference.

N2516-6002-RB

Name: N2516-6002-RB
Brand: 3M
SKU: 928652
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	N2516-6002-RB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	19 Weeks
Features	Connector Header Through Hole 16 position 0.100" (2.54mm)
Manufacturer	3M
Series	2500
Package	Bulk
Operating Temperature Range	-55°C ~ 105°C
Mounting	Through Hole
Family Name	N2516
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	N2516-6002RB, XP000004778, MHC16K, 51111627266, Q3744648, 80400031342, 5111162726, N25166002RB, 7000005853
Quantity per package	560
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	928652-N2516-6002-RB
Ultra Librarian 3D Model	Ultra Librarian N2516-6002-RB CAD Model

Alternative Products

Description

The 3M 928652-N2516-6002-RB is a connector header that features a through hole mounting type.

Mounting Type: Through Hole
Positions: 16
Pitch: 0.100 inches (2.54mm)
Series: 2500
Family Name: N2516
Quantity per Package: 560
Estimated Production Lead Time: 19 weeks
ECCN: EAR99
REACH: Unaffected
