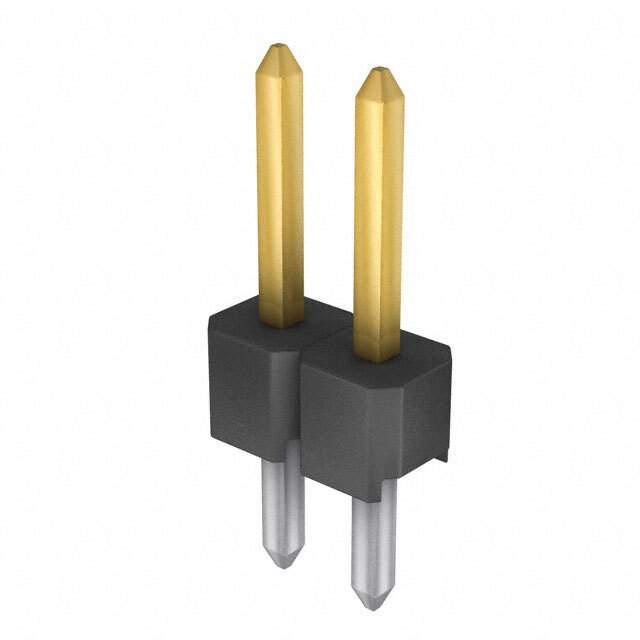

Same model may have multiple batches, images only for reference.

961102-6404-AR

Name: 961102-6404-AR
Brand: 3M
SKU: 987742
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	961102-6404-AR
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	961
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.445" (11.30mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-25°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	961102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	3M9447,3M9457-02,3M9447-ND,4046719181605,4671918160,9611026404AR
Standard Package	1
Win Source Part Number	987742-961102-6404-AR
Ultra Librarian 3D Model	Ultra Librarian 961102-6404-AR CAD Model

Alternative Products

Description

The 961102-6404-AR is a rectangular connector header designed for use in electronic devices. This connector has two male pins and is loaded with all positions.

Product Name: 961102-6404-AR
Pins: 2 (Male)
Positions: Loaded
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Temperature Range: -25°C to 105°C
Mounting: Through-Hole
Package: Standard package of 1
Manufacturer: 3M
Series: 961 series
