929852-01-16-RA

Part No 929852-01-16-RA
Manufacturer 3M
Catalog Rectangular Connectors

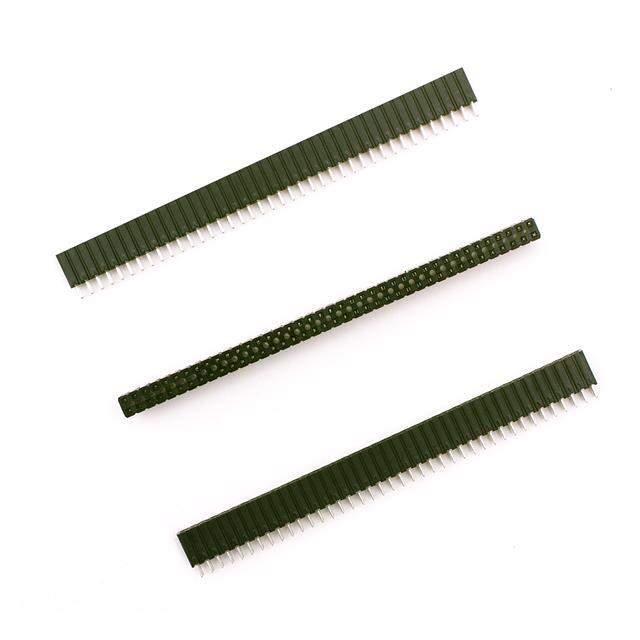

Description CONN RECEPT .100 DUAL STR 32POS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer 3M
Packaging Bulk
Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 32
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Insulation Color Black
Insulation Height 0.325" (8.25mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 2A
Voltage Rating 1500V
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Win Source Part Number 198350-929852-01-16-RA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 929852-01-16-RA CAD Model

Description

Product Description

The 929852-01-16-RA is a high-quality electronic connector renowned for its efficiency and durability. This connector is designed to ensure reliable connections in various electronic systems, making it an ideal choice for engineers and hobbyists alike.

Features and Benefits

  • High Durability: Made from robust materials that withstand rigorous handling and environmental stress.
  • Reliable Connection: Ensures secure and stable electrical connections, reducing the risk of disconnections.
  • Compact Design: Saves space while maintaining performance, suitable for small-scale applications.

Applications

  • Consumer Electronics
  • Automotive Systems
  • Telecommunication Devices
  • Embedded Systems

Additional Details

With part number 929852-01-16-RA, this connector meets industry standards and offers an excellent balance between cost efficiency and performance.
