Same model may have multiple batches, images only for reference.

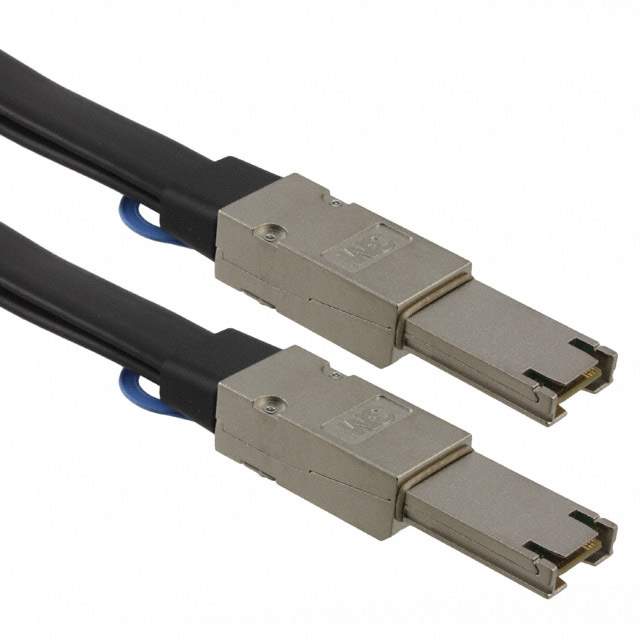

8G26-8A-CB1-00-5.00 Real Image
Same model may have multiple batches, images only for reference.

8G26-8A-CB1-00-5.00

Part No 8G26-8A-CB1-00-5.00
Manufacturer 3M
Catalog Pluggable Cables
Description CABLE MINISAS 4X M-M 5M / 26 Position miniSAS 4x Plug to Plug 16.40' (5.00m) Black Shielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Pluggable Cables
Mfr 3M
Series 8G26
Package Bulk
Cable Connectors miniSAS 4x
Number of Positions 26
Connector Type Plug to Plug
Gender Male to Male
Fastening Type Latch Lock, Push-Pull
Features Key Slot 2-4 to Key Slot 4-6, Pull Tab
Cable Type Flat, Twin Axial
Usage External
Length 16.40' (5.00m)
Color Black
Shielding Shielded
Wire Gauge 28 AWG
Frequency - Max 6Gbps
Temperature Range - Operating -20°C ~ 80°C
Base Product Number 8G26
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8544.42.9090
Other Names 50076308099881,8G268ACB100500,3M10734,76308099881,XP200020210,7010532148
Standard Package 1
Win Source Part Number 1145095-8G26-8A-CB1-00-5.00
Ultra Librarian 3D Model Ultra Librarian 8G26-8A-CB1-00-5.00 CAD Model

Description

The 3M 8G26-8A-CB1-00-5.00 is a pluggable cable assembly with a length of 16.40' (5.00m).

  • Number of Positions: 26
  • Color: Black
  • Connector Type: Plug to Plug
  • Fastening Type: Latch Lock, Push-Pull
  • Wire Gauge: 28 AWG
  • Component Gender: Male to Male
  • Cable Type: Flat, Twin Axial
  • Shielded: Yes
  • Frequency - Max: 6Gbps
  • Usage: External
  • HTSUS: 8544.42.9090
