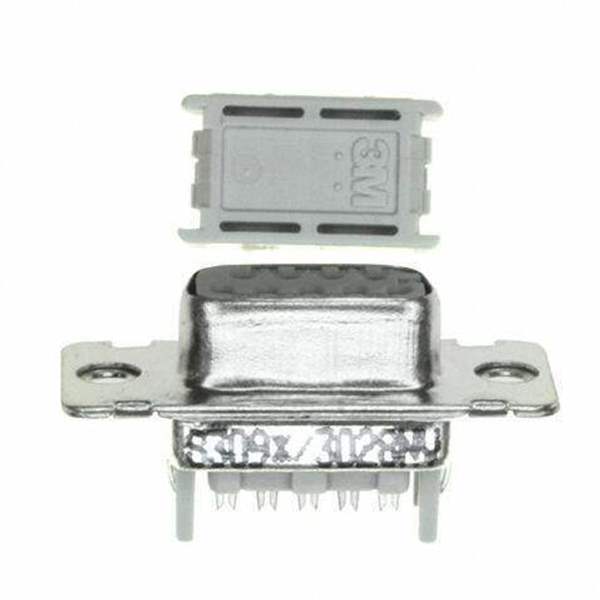

8309-60003M
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Category Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Packaging  Tray
Part Status Active
Connector Type Receptacle, Female Sockets
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Thickness 30.0µin (0.76µm)
Features Feed Through
Win Source Part Number WS1304764-8309-6000
Ultra Librarian 3D Model Ultra Librarian 8309-6000 CAD Model

Description

9 Position D-Sub Receptacle, Female Sockets Connector
