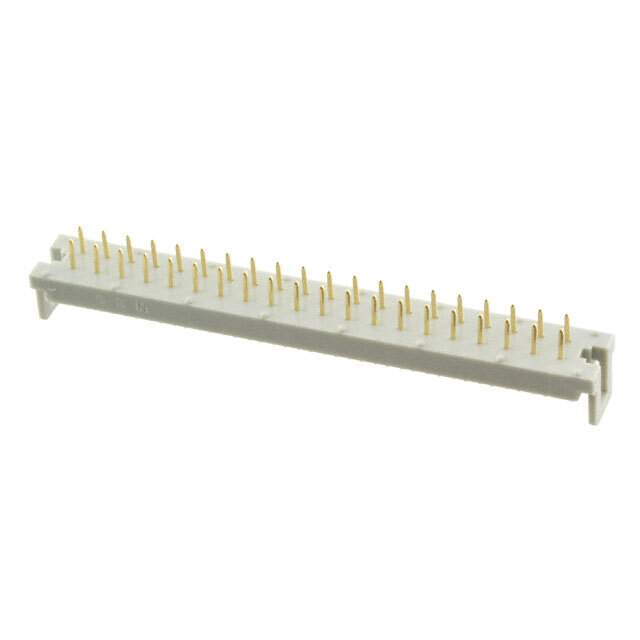

7840-0000PR Real Image
Same model may have multiple batches, images only for reference.

7840-0000PR

Part No 7840-0000PR
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN DIP HDR IDC 40P VERT / 40 Position Ribbon Cable, DIP Header Connector Gray IDC 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Board In, Direct Wire to Board
Mfr 3M
Series 78XX
Package Bulk
Connector Type Ribbon Cable, DIP Header
Number of Positions 40
Cable Pitch 0.050" (1.27mm)
Board-Side Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Through Hole
Cable Termination IDC
Wire Gauge 26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid
Features Feed Through
Contact Finish Gold
Contact Finish Thickness Flash
Color Gray
Number of Positions Loaded All
Base Product Number 7840
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337760-7840-0000PR
Ultra Librarian 3D Model Ultra Librarian 7840-0000PR CAD Model

Description

The 1337760-7840-0000PR is a 40-position board-in, direct wire-to-board connector from the 78XX series of rectangular connectors. The product is 1337760-7840-0000PR.

  • Series: 78XX
  • Type: Board-in, Direct Wire-to-Board
  • Design: Feed-Through
  • Compatibility: Ribbon Cable and DIP Header Connectors
  • Pitch: 0.100 inches (2.54mm)
  • Wire Gauge: 26 to 30 AWG (stranded or solid)
  • Insulation Material: Gray
  • Contact Finish: Gold with flash thickness
  • Packaging: Bulk
  • Standard Package: 100
  • Mounting Type: Through-Hole
  • Applications: Control and Computer Systems
