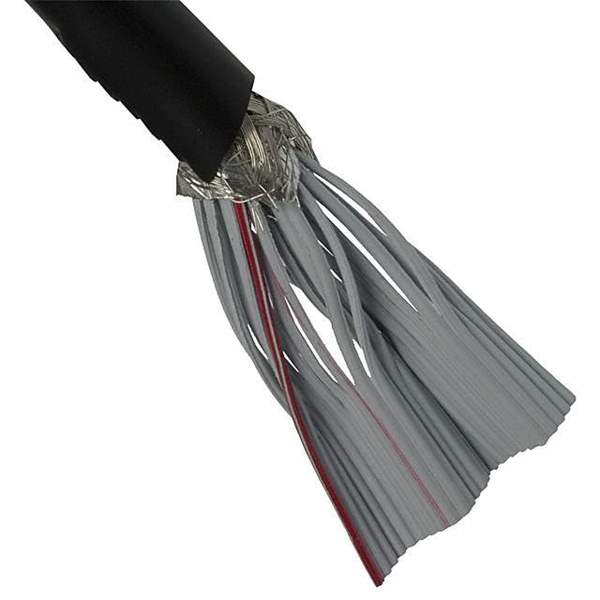

3659/25-300SF Real Image
Same model may have multiple batches, images only for reference.

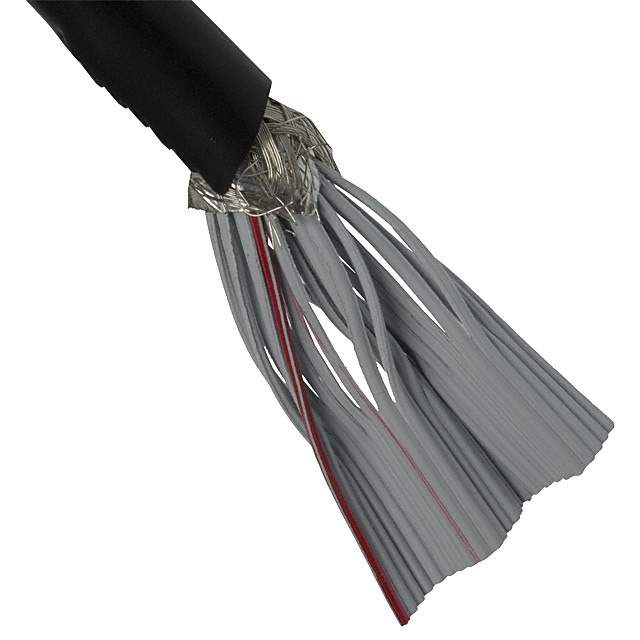

3659/25-300SF

Part No 3659/25-300SF
Manufacturer 3M
Catalog Flat Ribbon Cables
Description Round Flat Cable 25Conductors 28AWG 91.44m 9.4mm Tinned Copper Black/Gray 300V Roll
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 91.44 m
Cable Pitch 1.27 mm
Case / Package 300
Color Black, Grey
Conductor Material Copper
Contact Plating Tin
Depth 30.5 mm
Insulation Material PVC
Length 91.44 m
Max Operating Temperature 105 °C
Min Operating Temperature -20 °C
Mount Cable
Number of Conductors 25
Pitch 1.27 mm
RoHS Compliant
Shielding Shielded
Voltage Rating 300 V
Weight 12.836664 kg
Wire/Cable Diameter 9.4 mm
Wire/Cable Gauge 28 AWG
Wire/Cable Type Flat
Win Source Part Number 1203316-3659/25-300SF
Categories Flat Ribbon Cables
Manufacturer 3M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3659/25-300SF CAD Model

Description

The 3M 1203316-3659/25-300SF flat ribbon cable is a shielded cable that comes with a pitch of 1.27 mm.

  • Pitch: 1.27 mm
  • Voltage Rating: 300 V
  • Length: 91.44 m
  • Conductors: 25
  • Contact Plating: Tin
  • Insulation Material: PVC
  • Conductor Material: Copper
  • Color: Black and grey
  • Weight: 12.836664 kg
  • RoHS Compliant: Yes
  • Temperature Range: -20 °C to 105 °C
  • Depth: 30.5 mm
