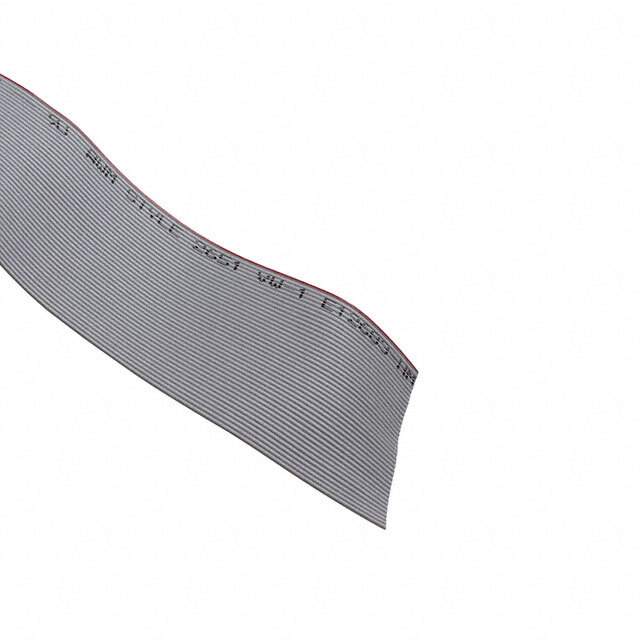

9L28040 008H100 Real Image
Same model may have multiple batches, images only for reference.

9L28040 008H100

Part No 9L28040 008H100
Manufacturer Belden Inc.
Catalog Cables, Wires Fiber Optic Cables
Description CBL RIBN 40COND 0.05 GRAY 100' / Flat Ribbon Cable Gray 40 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
Datasheet
9L28040 008H100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr Belden Inc.
Series Classics
Package Box
Cable Type Flat Cable
Number of Conductors 40
Pitch 0.050" (1.27mm)
Length 100.0' (30.48m)
Wire Gauge 28 AWG
Conductor Strand 7 Strands / 36 AWG
Shielding Unshielded
Jacket Color Gray
Ribbon Thickness 0.035" (0.89mm)
Ribbon Width 2.000" (50.80mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 300 V
Temperature Range - Operating -40°C ~ 105°C
Ratings UL Style 2651
Conductor Material Copper, Tinned
Insulation Resistance 10GOhm
First Conductor Mark Red
Current Rating (Amps) 1 A
Base Product Number 9L28040
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names BEL1481-100
Standard Package 1
Win Source Part Number 987844-9L28040 008H100
Ultra Librarian 3D Model Ultra Librarian 9L28040 008H100 CAD Model

Description

The Belden Inc. manufactured electronic component with a Win Source Part Number of 987844-9L28040 008H100 is a flat ribbon cable that belongs to the Cables, Wires>Flat Ribbon Cables category.

  • Category: Cables, Wires>Flat Ribbon Cables
  • Pitch: 0.050" (1.27mm)
  • Conductors: 40
  • Length: 100.0' (30.48m)
  • Voltage Rating: 300 V
  • Ribbon Thickness: 0.035" (0.89mm)
  • Ribbon Width: 2.000" (50.80mm)
  • Temperature Range: -40°C ~ 105°C
  • Insulation Resistance: 10GOhm
