Same model may have multiple batches, images only for reference.

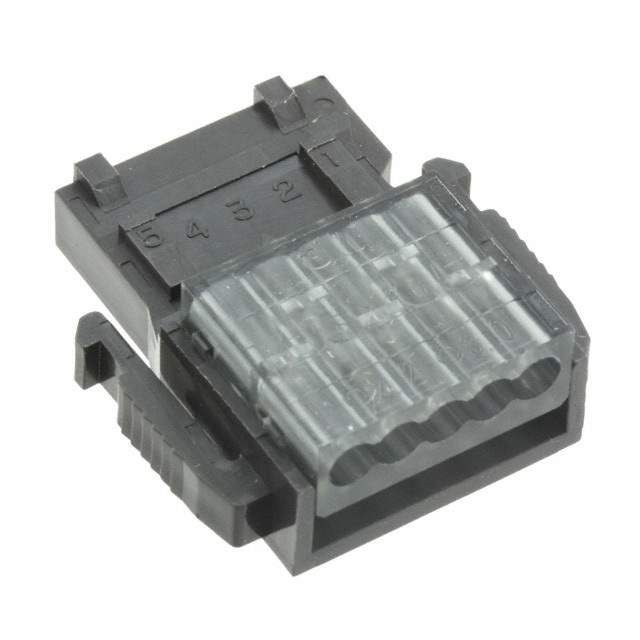

35505-6080-A00GF Real Image
Same model may have multiple batches, images only for reference.

35505-6080-A00GF

Part No 35505-6080-A00GF
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN SOCKET 5POS IDC 18AWG GOLD / 5 Position Rectangular Socket Connector IDC Gold 18 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr 3M
Series Power Clamp, 355
Package Bulk
Connector Type Socket
Contact Type Female Socket
Number of Positions 5
Pitch 0.118" (3.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Fastening Type Latch Lock
Cable Termination IDC
Wire Type Discrete
Wire Gauge 18 AWG
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Color Black
Base Product Number 35505
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names 355056080A00GF,-35505-6080-A00GF,51900158356,04519001583567,35505-6080-A00GF-ND,3M9653,7000007418,JE150261806
Standard Package 100
Win Source Part Number 1038262-35505-6080-A00GF
Ultra Librarian 3D Model Ultra Librarian 35505-6080-A00GF CAD Model

Description

The electronic component with a Win Source Part Number of 1038262-35505-6080-A00GF is a rectangular connector with a latch lock fastening type.

  • Win Source Part Number: 1038262-35505-6080-A00GF
  • Connector Type: Rectangular Connector
  • Fastening Type: Latch Lock
  • Positions: 5
  • Contact Type: Female Socket
  • Pitch: 0.118 inches
  • Wire Gauge: 18 AWG
  • Manufacturer: 3M
  • Package: Bulk
  • Standard Package: 100
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
  • Applications: Automotive, Industrial Machinery, and Consumer Electronics
