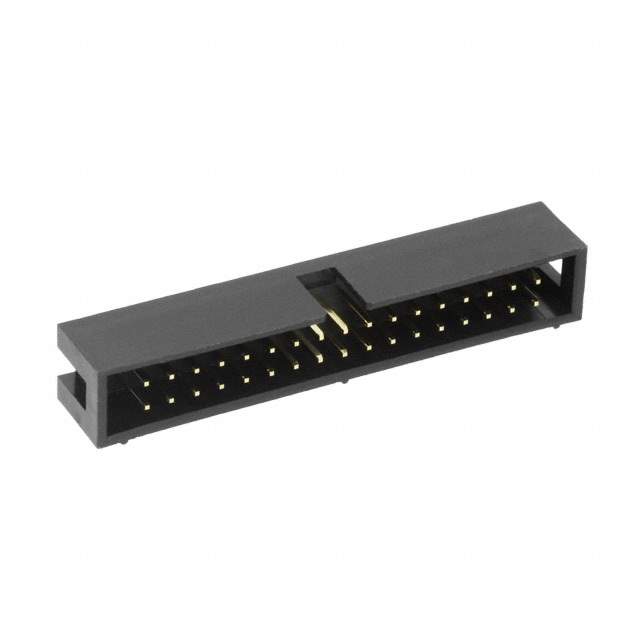

Same model may have multiple batches, images only for reference.

30334-6002HB

Name: 30334-6002HB
Brand: 3M
SKU: 1006226
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	30334-6002HB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 34POS 2.54MM / Connector Header Through Hole 34 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	303
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.110" (2.79mm)
Insulation Height	0.366" (9.30mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Contact Finish Thickness - Post	Flash
Base Product Number	30334
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	05111161777,5111161777,SE008002096,30334-6002HB-ND,3M15456,303346002HB,7010404960,-30334-6002HB,51111617779
Standard Package	1,000
Win Source Part Number	1006226-30334-6002HB
Ultra Librarian 3D Model	Ultra Librarian 30334-6002HB CAD Model

Description

The 30334-6002HB is a 34-position header connector manufactured by 3M.

Positions: 34
Features: Keying Slot, Male Pins, Shrouded 4-Wall Design
Application: Board-to-Board or Cable Connections
Current Rating: 1A
Package: Bulk
Mounting Type: Through-Hole
