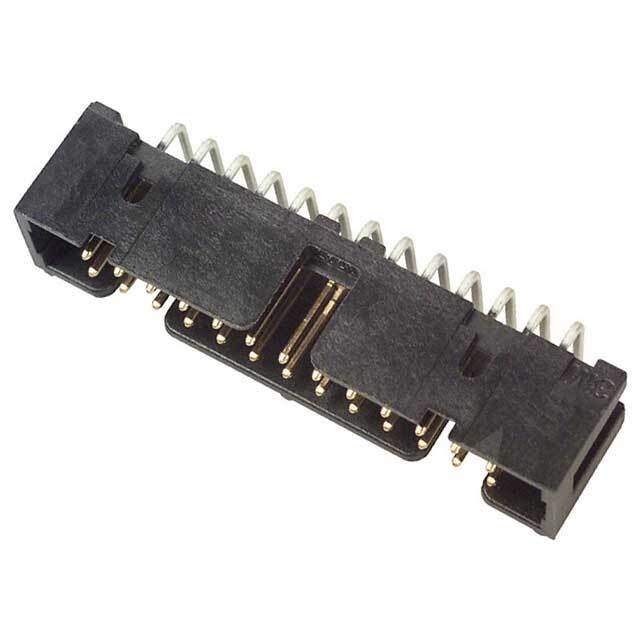

2526-5002UB

Name: 2526-5002UB
Brand: 3M
SKU: 761964
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2526-5002UB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	SHROUDED HEADER 26 POS RT ANGLE
Datasheet	2526-5002UB Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	3M
Series	2500
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.243" (6.17mm)
Contact Length - Post	0.112" (2.84mm)
Insulation Height	0.338" (8.59mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features	Keying Slot
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1.75A
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	761964-2526-5002UB
Popularity	Medium
Supply and Demand Status	Limited
Family Name	2500
Introduction Date	November 07, 2008
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 2526-5002UB CAD Model

Description

The 3M 2500 series header connector is a 26-position male pin connector from 3M.

Applications: Board-to-Board, Cable-to-Board
Packaging: Bulk
Pitch: 0.100 inches
Row Spacing: 0.100 inches
Shrouded: 4 Walls
Keying: Slot
Material: Copper Alloy
Mating Contact Finish: Gold
Post Contact Finish: Tin-Lead
Current Rating: 1.75A
Operating Temperature: -55°C to 105°C
