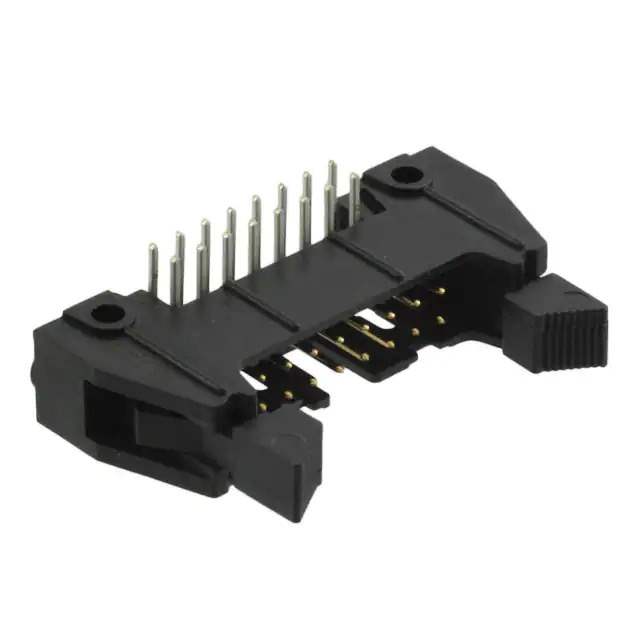

N3408-5202RB

Name: N3408-5202RB
Brand: 3M
SKU: 646503
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	N3408-5202RB
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 16POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	3000
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.112" (2.84mm)
Insulation Height	0.340" (8.64mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1.75A
Contact Finish Thickness - Post	200.0µin (5.08µm)
Base Product Number	N3408
Standard Package	350 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	646503-N3408-5202RB
Ultra Librarian 3D Model	Ultra Librarian N3408-5202RB CAD Model

Description

The N3408-5202RB is a male pin header connector from the 3000 series manufactured by 3M.

Series: 3000
Connector Type: rectangular
Positions: 16
Features: keying slots and a mounting flange
Mounting Type: through-hole, right-angle
Material: copper alloy
Finish: gold (mating contacts)
Operating Temperatures: -55°C to 105°C
Status: active
Manufacturer: 3M
