Same model may have multiple batches, images only for reference.

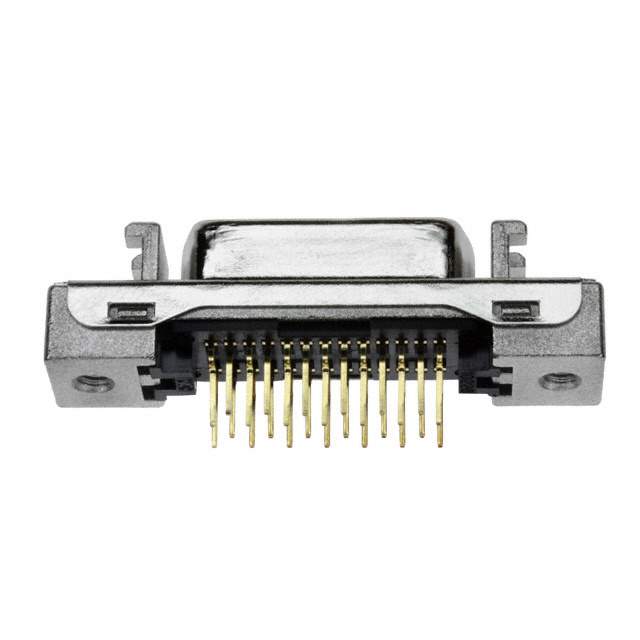

10226-6212PC Real Image
Same model may have multiple batches, images only for reference.

10226-6212PC

Part No 10226-6212PC
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS PCB SOLDER / 26 Position Receptacle Connector Panel Mount, Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>Centronics Connectors
Manufacturer 3M
Packaging Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Panel Mount, Through Hole
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10226
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 3M1819,10226-6212PC-ND,4547452261857,102266212PC,Q6074259,54745226185,7000021504,JE150317657
Standard Package 100
Win Source Part Number 1333213-10226-6212PC
Ultra Librarian 3D Model Ultra Librarian 10226-6212PC CAD Model

Description

The 3M Centronics Connector is a 26-position, shielded receptacle that is designed for use in D-Sub, D-Shaped Connectors.

  • Positions: 26
  • Shielded: Yes
  • Mounting Type: Panel Mount, Through-Hole
  • Contact Type: Male Pin
  • Termination: Soldered
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Temperature Range: -55°C to 125°C
