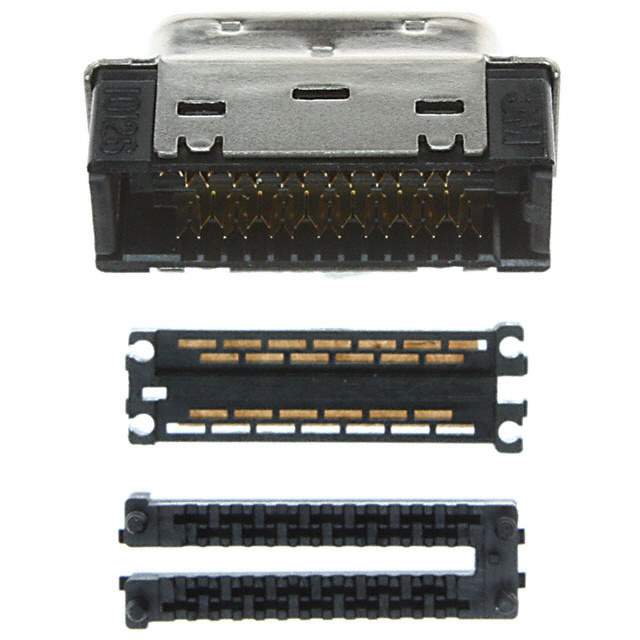

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr 3M
Series 101, Mini D Ribbon (MDR)
Package Tray
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 26
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Termination IDC
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 10126
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 90169008640,MPB26A,7000007373,JE150174868,101266000EC,4901690086403
Standard Package 100
Win Source Part Number 1034211-10126-6000EC
Ultra Librarian 3D Model Ultra Librarian 10126-6000EC CAD Model

Description

The 3M 1034211-10126-6000EC is a 26-position, shielded connector plug with IDC termination. It is manufactured by 3M.

  • Series: 101 Mini D Ribbon (MDR)
  • Contacts: 26
  • Rows: two
  • Packaging: tray
  • Pieces per package: 100
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
