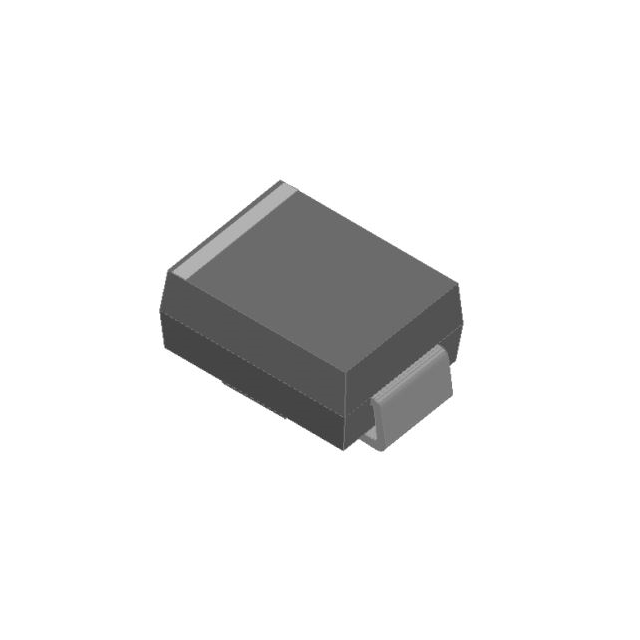

ES3D-F1-0000 Real Image
Same model may have multiple batches, images only for reference.

ES3D-F1-0000

Part No ES3D-F1-0000
Manufacturer Yangzhou yangjie electronic co., ltd
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 3A DO214AB / Diode Standard 200 V 3A Surface Mount DO-214AB (SMC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Yangzhou Yangjie Electronic Technology Co.,Ltd
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -55°C ~ 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Other Names 3191-ES3D-F1-0000TR,3191-ES3D-F1-0000CT,3191-ES3D-F1-0000DKR
Standard Package 3,000
Win Source Part Number 1146149-ES3D-F1-0000
Ultra Librarian 3D Model Ultra Librarian ES3D-F1-0000 CAD Model

Description

The ES3D-F1-0000 is a fast recovery diode with a standard diode type.

  • Diode Type: Standard
  • Reverse Voltage: 200V
  • Current Rating: 3A
  • Forward Voltage: 950mV @ 3A
  • Reverse Recovery Time: 35ns
  • Package: DO-214AB, SMC
  • Supplier Device Package: DO-214AB (SMC)
  • Operating Temperature: -55°C to 150°C
  • Application: Diodes - Rectifiers - Single
