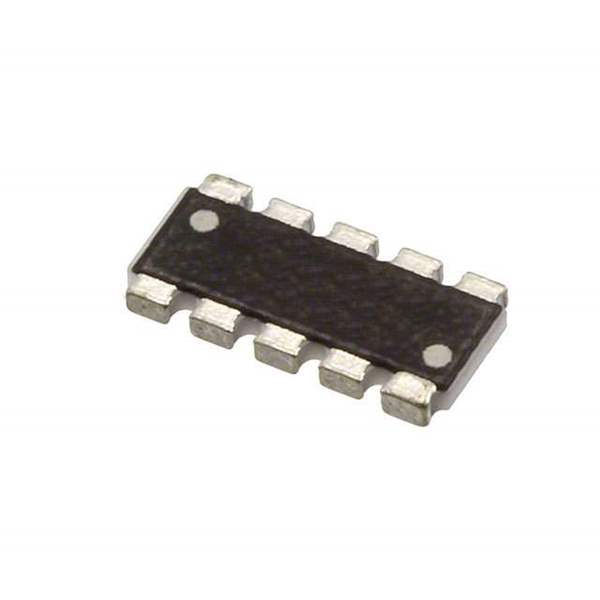

The YC358LJK-07102 is a thick film chip resistor produced by Yageo, designed for surface mount technology (SMT). These resistors are commonly employed in diverse electronic circuits to provide resistance and are valued for their compact size and ease of assembly.

Applications:

• Current Limiting: Used to restrict the flow of electrical current, protecting sensitive components from damage.
• Voltage Division: Utilized in voltage divider circuits to establish specific voltage levels.
• Pull-up/Pull-down Resistors: Sets the default logic states of digital input lines.
• RC Timing Circuits: Integral to resistor-capacitor circuits for timing and filtering purposes.
• Signal Attenuation: Attenuates the signal amplitude in various circuit applications.

Features:

• Resistance Value: 1 kOhms (1000 Ohms) - indicated by '102'.
• Tolerance: Typically 5% tolerance.
• Power Rating: Varies depending on package size, commonly 1/4W or 1/8W.
• Temperature Coefficient: Typically ±200 ppm/°C.
• Surface Mount Technology (SMT): Optimized for automated placement and soldering on PCBs.
• RoHS Compliant: Meets environmental standards, free from hazardous substances.

Benefits:

• Compact Size: Enables high-density board layouts, saving valuable space.
• Reliable Performance: Provides stable resistance characteristics under varying conditions.
• Cost-Effective: Offers an economical solution for general-purpose resistance needs.
• Easy Assembly: Simplifies the manufacturing process through automated assembly.
• Wide Availability: Readily available from numerous distributors.

Additional Details:

The 'YC358L' designates the series of resistors produced by Yageo. The 'JK' most likely specifies the packaging or termination specifics. The '07102' corresponds to the resistance code, signifying 1 kOhms (10 x 10^2). This component is passive and doesn't need an external power source. Typical package sizes are 0805 or 1206; consult the datasheet for exact dimensions.

Specifications: Common package sizes are 0603, 0805, and 1206. For detailed electrical and mechanical characteristics, refer to the Yageo YC series datasheet.
