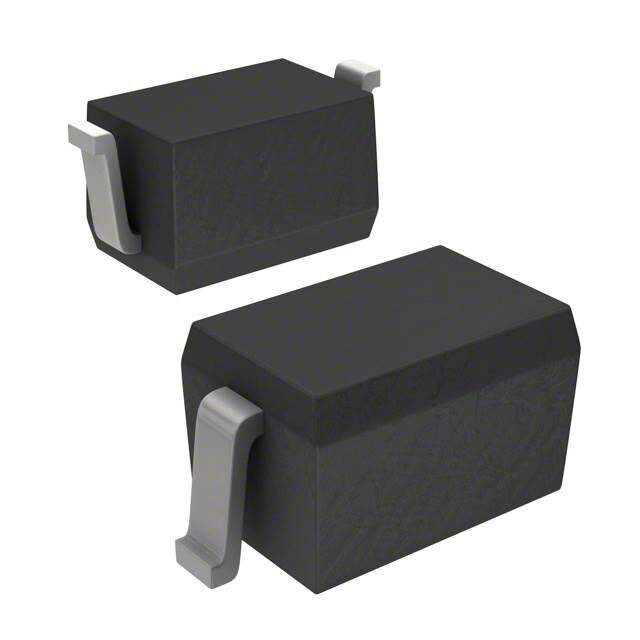

UCD32C05L01 Real Image
Same model may have multiple batches, images only for reference.

UCD32C05L01

Part No UCD32C05L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, SOD-323, 5V, 15V, REEL / 15V (Typ) Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet
UCD32C05L01 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr YAGEO
Series UCD32CXXL01
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 15V (Typ)
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 250W
Power Line Protection No
Applications DVI, USB
Capacitance @ Frequency 1.5pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 13-UCD32C05L01TR
Standard Package 3,000
Win Source Part Number 1107667-UCD32C05L01
Ultra Librarian 3D Model Ultra Librarian UCD32C05L01 CAD Model

Description

The UCD32C05L01 is a Zener type TVS diode from YAGEO's UCD32CXXL01 series.

  • Package: Tape and Reel (TR)
  • Channels: 1 Bidirectional
  • Reverse Standoff Voltage: 5V (max)
  • Breakdown Voltage: 6V
  • Clamping Voltage: 15V (typ) @ Ipp
  • Peak Pulse Power: 250W
  • Capacitance: 1.5pF @ 1MHz
  • Peak Pulse Current: 12A (8/20μs)
  • Mounting: SMD (SMT)
  • Applications: DVI and USB
  • Operating Temperature: -55°C to 150°C (TJ)
  • ECCN: EAR99
  • Popularity: High
