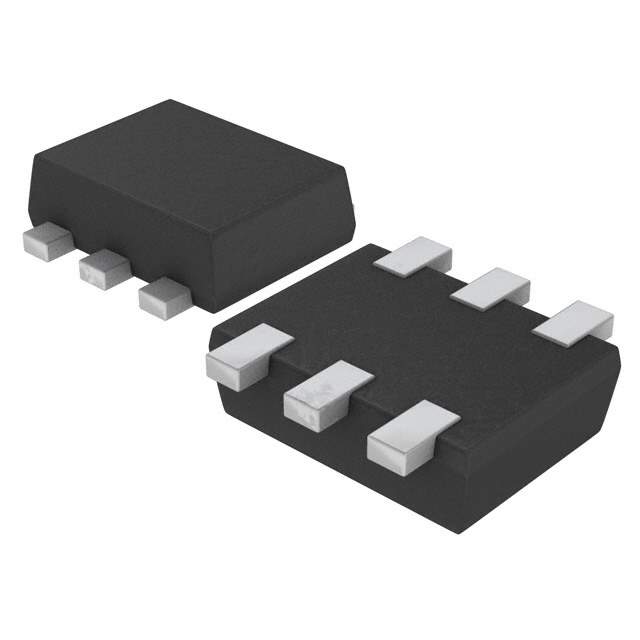

UAT56A05L05

Name: UAT56A05L05
Brand: Yageo
SKU: 1383776
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UAT56A05L05
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOT-563, 5V, 15V, REEL / 15V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount SOT-563
Datasheet	UAT56A05L05 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>Transient Voltage Suppressors (TVS)>TVS Diodes
Mfr	Yageo
Series	UAT56A05L05
Package	Tape & Reel (TR)
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	15V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	Yes
Applications	Ethernet, USB
Capacitance @ Frequency	1pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Standard Package	3,000 pcs
Win Source Part Number	1383776-UAT56A05L05
Ultra Librarian 3D Model	Ultra Librarian UAT56A05L05 CAD Model

Description

The UAT56A05L05 is a steering TVS diode from Yageo.

Category: Circuit Protection
Application: Ethernet and USB
Channels: 4 Unidirectional
Reverse Standoff Voltage: 5V
Breakdown Voltage: 6V
Clamping Voltage: 15V @ Peak Pulse Current
Mounting Type: Surface Mount
Package: Tape and Reel
Moisture Sensitivity Level: 1
Protection: Power Line
Temperature Range: -55°C to 150°C
