Same model may have multiple batches, images only for reference.

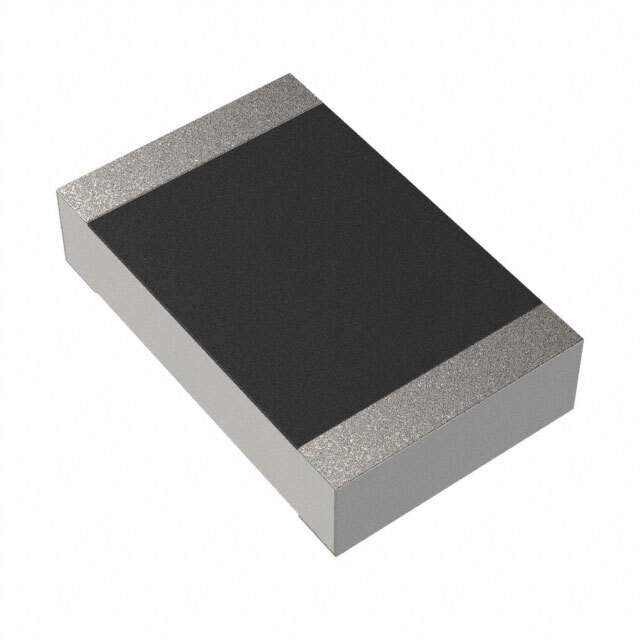

SR0805FR-7T100RL Real Image
Same model may have multiple batches, images only for reference.

SR0805FR-7T100RL

Part No SR0805FR-7T100RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 100 OHM 1% 1/3W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 19 Weeks
Features 100 ±1% 0.333W, 1/3W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Manufacturer Yageo
Series SR
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 0805 (2012 Metric)
Case / Package 0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number YAG5857TR, YAG5857CT, YAG5857DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 856601-SR0805FR-7T100RL
Ultra Librarian 3D Model Ultra Librarian SR0805FR-7T100RL CAD Model

Description

The Yageo SR0805FR-7T100RL is a 100 ±1% 0.333W, 1/3W Chip Resistor. It is manufactured by Yageo.

  • Resistance: 100 ±1%
  • Power: 0.333W, 1/3W
  • Package: 0805 (2012 Metric)
  • Package Quantity: 5000 (Reel)
  • Series: SR
  • Temperature Range: -55°C ~ 155°C
  • Technology: Pulse Withstanding Thick Film
  • Compliance: AEC-Q200
