Same model may have multiple batches, images only for reference.

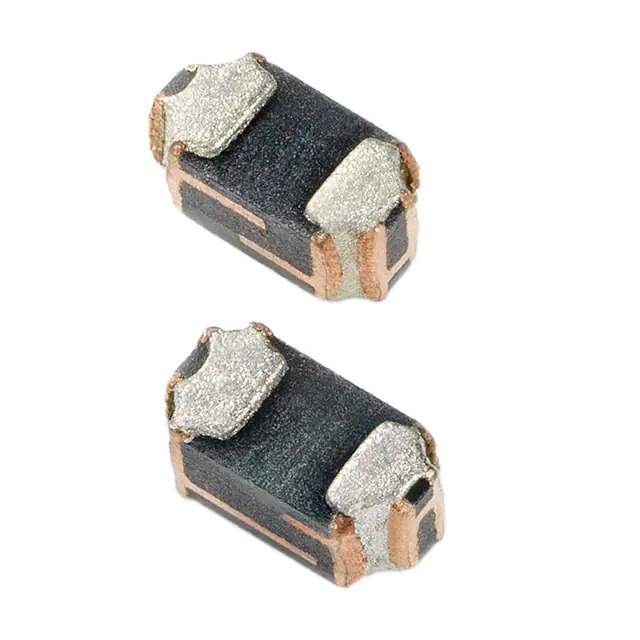

0402L020SLKR Real Image
Same model may have multiple batches, images only for reference.

0402L020SLKR

Part No 0402L020SLKR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 200MA 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr Littelfuse Inc.
Series POLY-FUSE®, LoRho
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 6V
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 500 mA
Current - Max 40 A
Time to Trip 1 s
Resistance - Initial (Ri) (Min) 100 mOhms
Resistance - Post Trip (R1) (Max) 1.25 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), Concave
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.024" (0.60mm)
Approval Agency cURus, TUV
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 853200-0402L020SLKR
Ultra Librarian 3D Model Ultra Librarian 0402L020SLKR CAD Model

Description

The 853200-0402L020SLKR is a polymeric PTC (Positive Temperature Coefficient) resettable fuse from the POLY-FUSE® LoRho series manufactured by Littelfuse Inc.

  • Voltage Rating: 6V (Maximum)
  • Current Rating: 40A (Maximum)
  • Hold Current: 200mA
  • Trip Current: 500mA
  • Time to Trip: 1s
  • Mounting Type: Surface Mount
  • Package Size: 0402 (1005 Metric)
  • Shape: Concave
  • Operating Temperature: -40°C to 85°C
  • Initial Resistance: 100mOhms
  • Post-Trip Resistance: 1.25 Ohms
  • Product Status: Active
  • Approvals: cURus and TUV
