Same model may have multiple batches, images only for reference.

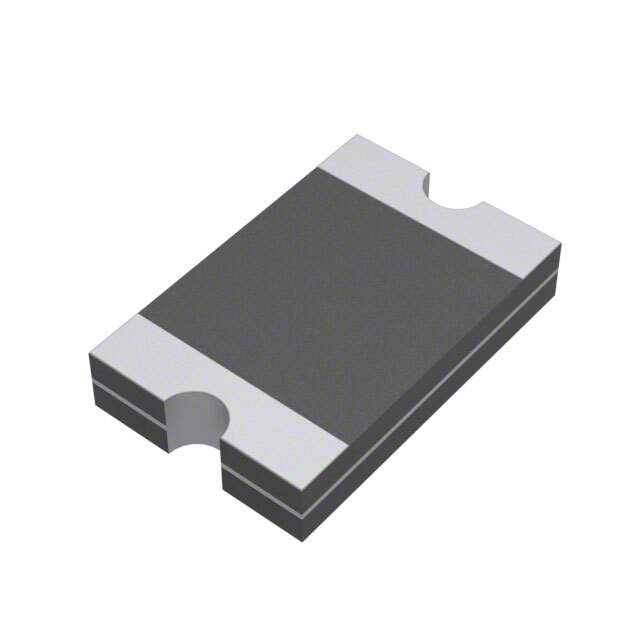

SMD0805B035TF Real Image
Same model may have multiple batches, images only for reference.

SMD0805B035TF

Part No SMD0805B035TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 0805, 6V 0.35A, REEL 7" / Polymeric PTC Resettable Fuse 6V 350 mA Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
SMD0805B035TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Manufacturer Yageo
Packaging Reel - TR
Type Polymeric
Voltage - Max 6V
Current - Max 100 A
Current - Hold (Ih) (Max) 350 mA
Current - Trip (It) 750 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 250 mOhms
Resistance - Post Trip (R1) (Max) 1.2 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency cUL, TUV, UL
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Part Number YAG6746DKR,YAG6746CT,YAG6746TR
Standard Package 4,000
Win Source Part Number 1335034-SMD0805B035TF
Ultra Librarian 3D Model Ultra Librarian SMD0805B035TF CAD Model

Description

The Yageo 1335034-SMD0805B035TF is a polymeric PTC resettable fuse with a maximum voltage of 6V and a current rating of 100A. It has a current hold of 350mA and a current trip of 750mA with a trip time of 100ms.

  • Size: 0.083” L x 0.053” W (2.10mm x 1.35mm)
  • Thickness: 0.039” (1.00mm)
  • Designed for: surface mount
  • Case/Package: concave 0805 (2012 metric)
  • Approval Agencies: cUL, TUV, and UL approved
  • ROHS3 Compliant: Yes
