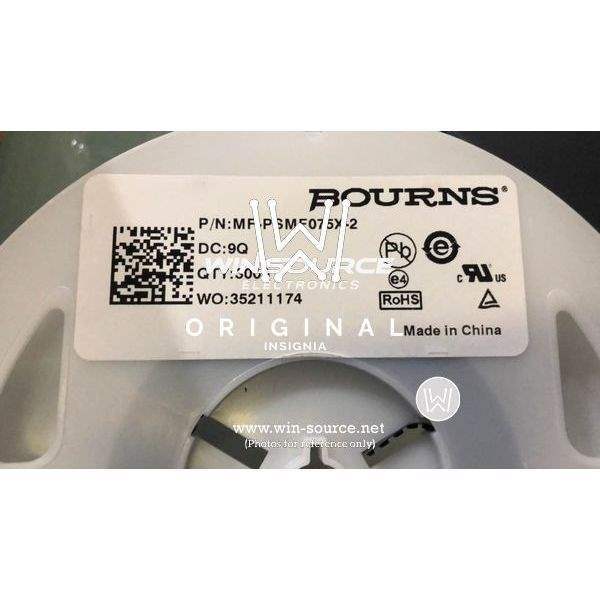

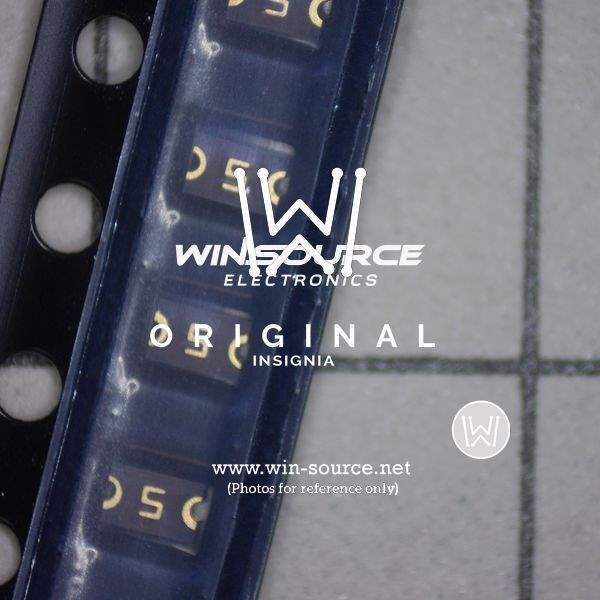

MF-PSMF075X-2 Real Image MF-PSMF075X-2 real image MF-PSMF075X-2 label picture
Same model may have multiple batches, images only for reference.
MF-PSMF075X-2 Real Image MF-PSMF075X-2 real image MF-PSMF075X-2 label picture
MF-PSMF075X-2 Real Image MF-PSMF075X-2 real image MF-PSMF075X-2 label picture
Same model may have multiple batches, images only for reference.

MF-PSMF075X-2

Part No MF-PSMF075X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE SMD 0805
Datasheet
MF-PSMF075X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 90 mOhm
Resistance - Post Trip (R1) (Max) 350 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Thickness (Max) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 003403-MF-PSMF075X-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-PSMF075X-2 CAD Model

Description

The Bourns Inc. 003403-MF-PSMF075X-2 is a polymeric type circuit protection component that comes in a reel package.

  • Approvals: cURus and TUV
  • Mounting: surface-mount technology (SMT)
  • Maximum Thickness: 0.049 inches (1.25mm)
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Maximum Hold Current: 750mA
  • Trip Current: 1.5A
  • Trip Time: 200ms
  • Popularity: high
  • Supply and demand status: sufficient
