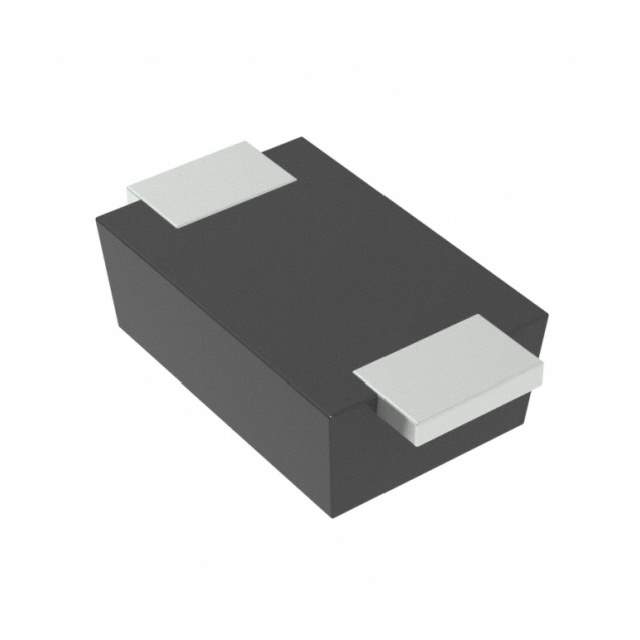

SJD12C18L01

Name: SJD12C18L01
Brand: Yageo
SKU: 1335022
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12C18L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ESD, SOD-123S, 18V, 29.2V, R / 29.2V Clamp 6.9A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12C18L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	29.2V
Current - Peak Pulse (10/1000µs)	6.9A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	13-SJD12C18L01TR
Standard Package	3,000
Win Source Part Number	1335022-SJD12C18L01
Ultra Librarian 3D Model	Ultra Librarian SJD12C18L01 CAD Model

Description

The Yageo 1335022-SJD12C18L01 is a surface mount Zener diode that is designed for general-purpose applications. It is packaged in a reel - TR and has a standard package of 3,000. This diode has a voltage reverse standoff of 18V and a breakdown voltage of 20V.

Clamping Voltage @ Ipp: 29.2V
Power Peak Pulse: 200W
Current Peak Pulse: 6.9A (10/1000µs)
Package/Case: DO-219AA
Supplier Device Package: SOD-123S
Operating Temperature Range: -55°C to 150°C (TJ)
ROHS3 Compliant: Yes
