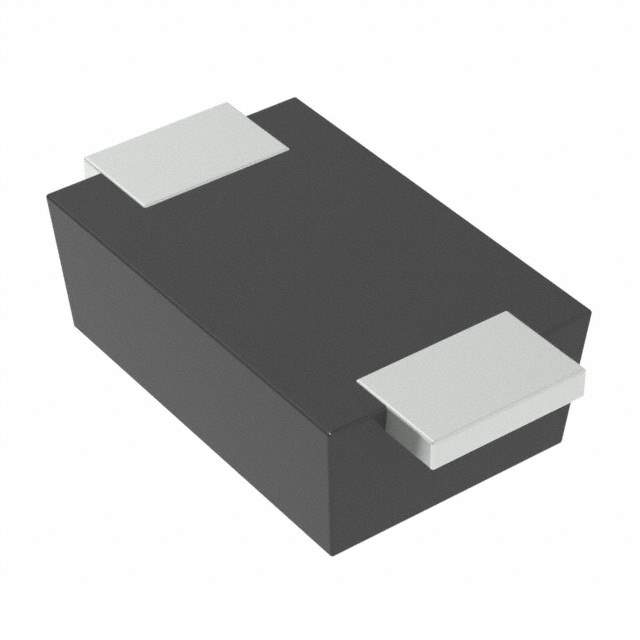

SJD12C15L01

Name: SJD12C15L01
Brand: Yageo
SKU: 1334989
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12C15L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS DIODE 15VWM 24.4VC SOD123S / 24.4V Clamp 8.2A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet	SJD12C15L01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	24.4V
Current - Peak Pulse (10/1000µs)	8.2A
Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
Base Product Number	SJD12C
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	13-SJD12C15L01DKR,13-SJD12C15L01TR,13-SJD12C15L01CT
Standard Package	3,000
Win Source Part Number	1334989-SJD12C15L01
Ultra Librarian 3D Model	Ultra Librarian SJD12C15L01 CAD Model

Description

The SJD12C15L01 TVS diode from Yageo is a high-quality circuit protection component suitable for use in a wide range of applications.

Voltage-Reverse Standoff: 15V
Voltage-Breakdown: 16.7V
Power-Peak Pulse: 200W
Current-Peak Pulse: 8.2A
Direction: Bidirectional
Mounting Style: Surface-mount
Supplier Device Package: SOD-123S
Packaging: Reel
Standard Package: 3,000
Compliance: RoHS3 compliant
ECCN Rating: EAR99
