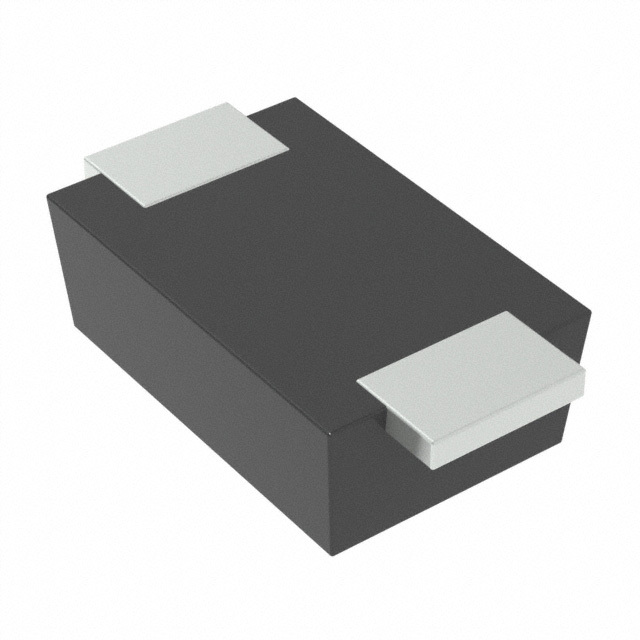

SJD12A18L01

Name: SJD12A18L01
Brand: Yageo
SKU: 1362352
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A18L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ARRAY ESD, SOD-123, 18V 29.2 / 29.2V Clamp 6.9A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	YAGEO
Series	SJD12A18L01
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	18V
Voltage - Breakdown (Min)	20V
Voltage - Clamping (Max) @ Ipp	29.2V
Current - Peak Pulse (10/1000µs)	6.9A
Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-219AA
Supplier Device Package	SOD-123S
Base Product Number	SJD12A
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362352-SJD12A18L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A18L01 CAD Model

Alternative Products

Description

The 1362352-SJD12A18L01 is a surface mount TVS diode manufactured by YAGEO.

Series: SJD12A
Packaging: Tape & Reel (TR)
Package Type: DO-219AA, SOD-123S
Operating Temperature: -55°C to 150°C
Application: General Purpose
Reverse Standoff Voltage: 18V
Breakdown Voltage: 20V
Clamping Voltage: 29.2V @ 6.9A
Peak Pulse Current: 6.9A
Peak Power: 1000W (1kW)
Power Line Protection: No
