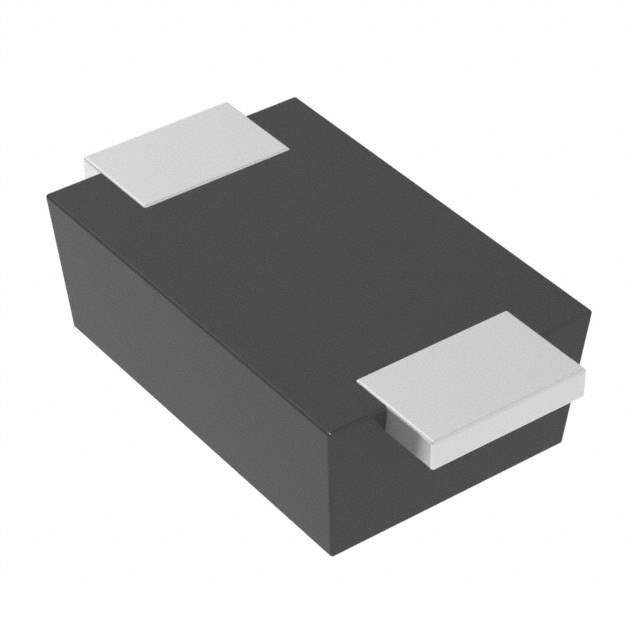

SJD12A15L01

Name: SJD12A15L01
Brand: Yageo
SKU: 1334994
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SJD12A15L01
Manufacturer	Yageo
Catalog	TVS - Diodes
Description	TVS ARRAY ESD, SOD-123, 15V 24.4 / 24.4V Clamp 8.2A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Manufacturer	Yageo
Packaging	Reel - TR
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	24.4V
Current - Peak Pulse (10/1000µs)	8.2A
Power - Peak Pulse	1000W (1kW)
Power Line Protection	No
Applications	General Purpose
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Case / Package	DO-219AA
Supplier Device Package	SOD-123S
Base Product Number	SJD12A
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	YAG6678TR,YAG6678CT,YAG6678DKR
Standard Package	3,000
Win Source Part Number	1334994-SJD12A15L01
Ultra Librarian 3D Model	Ultra Librarian SJD12A15L01 CAD Model

Alternative Products

Description

The Yageo SJD12A15L01 is a Zener diode with a reverse standoff voltage of 15V and a breakdown voltage of 16.7V.

Reverse Standoff Voltage: 15V
Breakdown Voltage: 16.7V
Clamping Voltage: 24.4V @ a peak pulse power of 1000W (1kW)
Device: Surface mount
Channel: Unidirectional
Peak Pulse Current: 8.2A (10/1000µs)
Operating Temperature Range: -55°C to 150°C (TJ)
Case: DO-219AA
Units: 3,000
