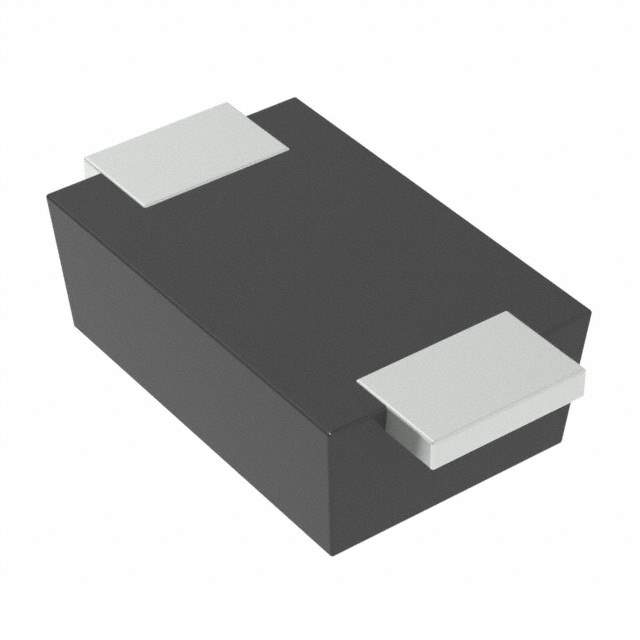

SJD12A12L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12A12L01

Part No SJD12A12L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ARRAY ESD, SOD-123, 12V 19.9 / 19.9V Clamp 10.1A Ipp Tvs Diode Surface Mount SOD-123S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Yageo
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 10.1A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-219AA
Supplier Device Package SOD-123S
Base Product Number SJD12A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number YAG6689TR,YAG6689DKR,YAG6689CT
Standard Package 3,000
Win Source Part Number 1335002-SJD12A12L01
Ultra Librarian 3D Model Ultra Librarian SJD12A12L01 CAD Model

Description

The Yageo Zener is a surface-mount type Zener diode designed for general-purpose circuit protection. It has a reverse standoff voltage of 12V and a breakdown voltage of 13.3V.

  • Clamping Voltage @ Ipp: 19.9V
  • Peak Pulse Power: 1000W (1kW)
  • Channel: unidirectional
  • Current Peak Pulse: 10.1A @ 10/1000µs
  • Package: reel-TR
  • Standard Package: 3000
  • Mounting Technology: surface-mount
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
