Same model may have multiple batches, images only for reference.

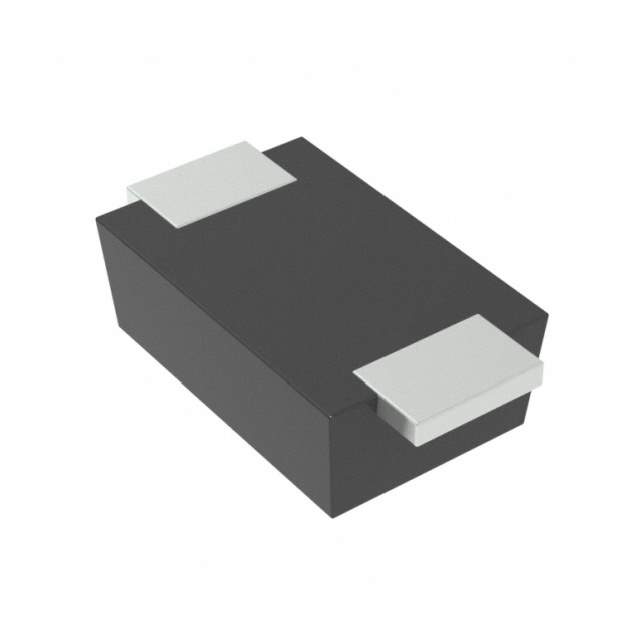

SJD12A08L01 Real Image
Same model may have multiple batches, images only for reference.

SJD12A08L01

Part No SJD12A08L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, SOD-123S, 8V, 13.6V, RE / 13.6V Clamp 14.7A Ipp Tvs Diode Surface Mount SOD-123S
Datasheet
SJD12A08L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Yageo
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 8V
Voltage - Breakdown (Min) 8.89V
Voltage - Clamping (Max) @ Ipp 13.6V
Current - Peak Pulse (10/1000µs) 14.7A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-219AA
Supplier Device Package SOD-123S
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SJD12A08L01CT,13-SJD12A08L01DKR,13-SJD12A08L01TR
Standard Package 3,000
Win Source Part Number 1334995-SJD12A08L01
Ultra Librarian 3D Model Ultra Librarian SJD12A08L01 CAD Model

Description

The Yageo 1334995-SJD12A08L01 is a zener type electronic component with a voltage reverse standoff (typ) of 8V and a voltage breakdown (min) of 8.89V.

  • Suitable for: use in various electronic devices such as circuit protection and TVS-diodes
  • Power Peak Pulse: 200W
  • Current Peak Pulse: 14.7A
  • Supply and Demand Status: unlimited
  • RoHS3 Compliant: Yes
