Same model may have multiple batches, images only for reference.

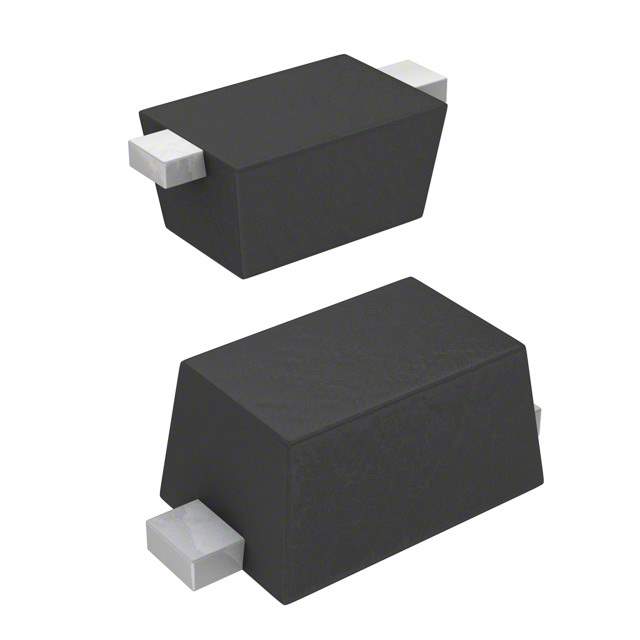

SFD52A07L01 Real Image
Same model may have multiple batches, images only for reference.

SFD52A07L01

Part No SFD52A07L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, SOD-523, 7V, 25V, REEL / 25V Clamp 16A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Datasheet
SFD52A07L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Yageo
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7V (Max)
Voltage - Breakdown (Min) 7.5V
Voltage - Clamping (Max) @ Ipp 25V
Current - Peak Pulse (10/1000µs) 16A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 190pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package SC-79, SOD-523
Supplier Device Package SOD-523
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SFD52A07L01TR
Standard Package 3,000
Win Source Part Number 1334991-SFD52A07L01
Ultra Librarian 3D Model Ultra Librarian SFD52A07L01 CAD Model

Description

Yageo Zener diode SFD52A07L01 is a unidirectional channel surface mount circuit protection component. It is designed for general purpose applications and has a reverse standoff voltage of 7V (max) and a breakdown voltage of 7.5V (min).

  • Direction: Unidirectional
  • Mounting: Surface Mount
  • Application: General Purpose
  • Reverse Standoff Voltage: 7V (max)
  • Breakdown Voltage: 7.5V (min)
  • Voltage Clamping @ Peak Pulse: 25V
  • Peak Pulse Power: Not Specified
  • Capacitance @ Frequency: 190pF @ 1MHz
  • Current Peak Pulse: 16A (8/20µs)
  • Package: SOD-523
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • ECCN: EAR99
  • MSL: 1 (unlimited)
