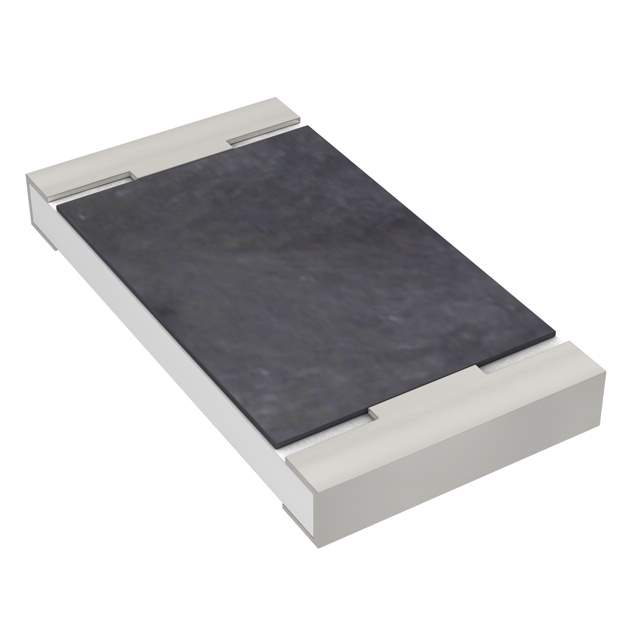

The RC2010JK-0715R is a thick film chip resistor manufactured by Yageo. The 'RC' indicates it's a resistor, '2010' specifies the physical dimensions (0.20 inch x 0.10 inch), 'JK' denotes a specific series with particular performance characteristics, '07' might be related to the packaging, and '15R' represents a resistance value of 15 ohms. These resistors are designed for surface mount technology (SMT) applications and offer a balance between power handling capability and physical size.

Applications:

• Power Supplies: Used in power supplies for current sensing and in voltage dividers.
• Automotive Electronics: Incorporated in automotive control modules for current limiting and signal conditioning.
• LED Lighting: Employed in LED drivers for current regulation and brightness control.
• Industrial Equipment: Utilized in industrial control systems and instrumentation for current sensing and voltage division.
• Communication Equipment: Found in telecommunication devices for impedance matching and signal attenuation.

Features:

• SMD (Surface Mount Device): Designed for automated assembly and high-density circuit board layouts.
• Thick Film Construction: Offers stable and reliable performance under various environmental conditions.
• High Power Rating: Capable of handling higher power dissipation compared to smaller chip resistors.
• Robust Construction: Provides excellent stability and reliability in demanding applications.
• RoHS Compliant: Meets the Restriction of Hazardous Substances directive, making it environmentally friendly.

Benefits:

• Precise Resistance Value: Provides an accurate resistance of 15 ohms, ensuring proper circuit operation.
• Stable Performance: Maintains consistent resistance under varying temperature and operating conditions.
• Reliable Operation: Offers long-term stability and minimizes resistance drift.
• Easy to Solder: Compatible with standard surface mount soldering techniques.
• Higher Power Dissipation: Suitable for applications requiring higher power handling capability.

Additional Details:

The RC2010JK-0715R typically has a tolerance of 5% and a power rating of 0.75W. It is designed for reflow soldering and is compatible with standard pick-and-place equipment. The larger size (2010) provides improved power dissipation capabilities compared to smaller packages like 0805 or 1206. It's frequently used in applications needing a low resistance value with a relatively high power rating.
