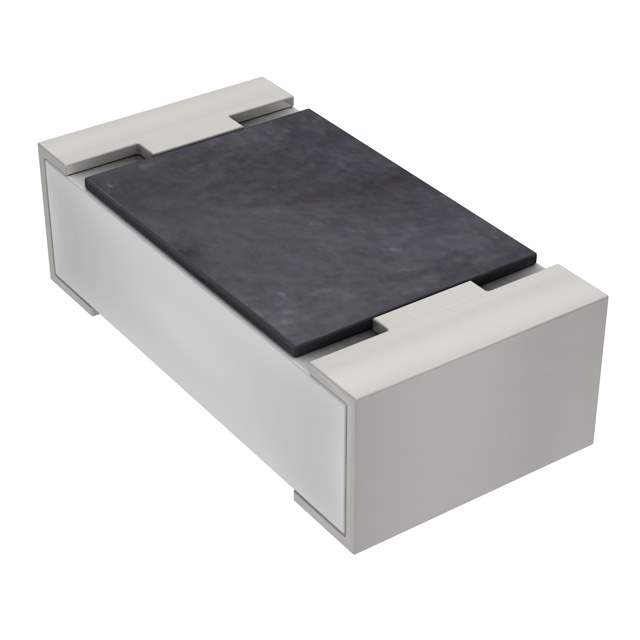

The RC0603JR-070RL is a thick film chip resistor manufactured by Yageo. This resistor is designed for general purpose applications where a specific resistance is needed within electronic circuits. The '0R' resistance indicates a zero-ohm jumper resistor.

Applications:

• Current sensing applications.
• Providing a direct connection or 'jumper' on a PCB.
• Used as a zero-ohm link for circuit configuration changes.
• Shorting circuit paths for testing purposes.
• Board assembly and rework.

Features:

• Small 0603 package size (1.6 mm x 0.8 mm).
• Zero-ohm resistance value.
• Tolerance typically +/- 5% for zero-ohm resistors.
• Power rating of 0.1W.
• Surface mountable.
• RoHS compliant.

Benefits:

• Easy placement and soldering due to surface mount design.
• Zero-ohm resistance provides a very low impedance connection.
• Small size enables use in dense circuit board layouts.
• Cost-effective solution for jumpering circuit paths.
• Environmentally friendly due to RoHS compliance.

Technical Specifications:

• Package Size: 0603
• Resistance: 0 Ω
• Tolerance: ±5% (typical for zero-ohm)
• Power Rating: 0.1 W
• Operating Temperature: -55°C to +155°C
• Termination Material: Tin (Sn)
