Same model may have multiple batches, images only for reference.

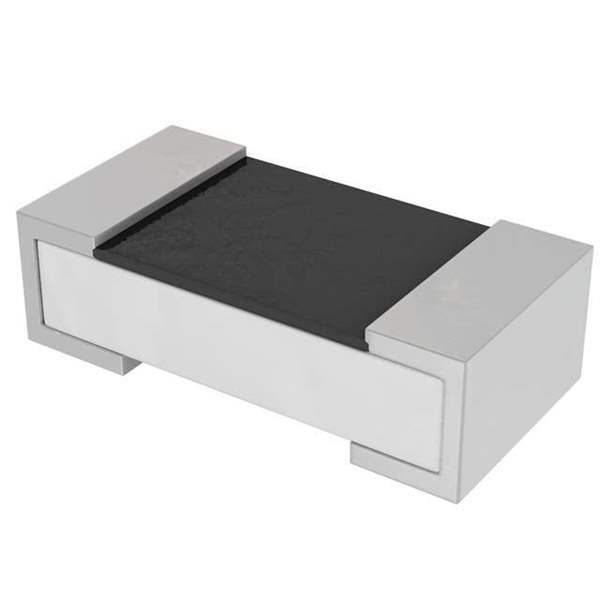

RC0100JR-07160RLYAGEO

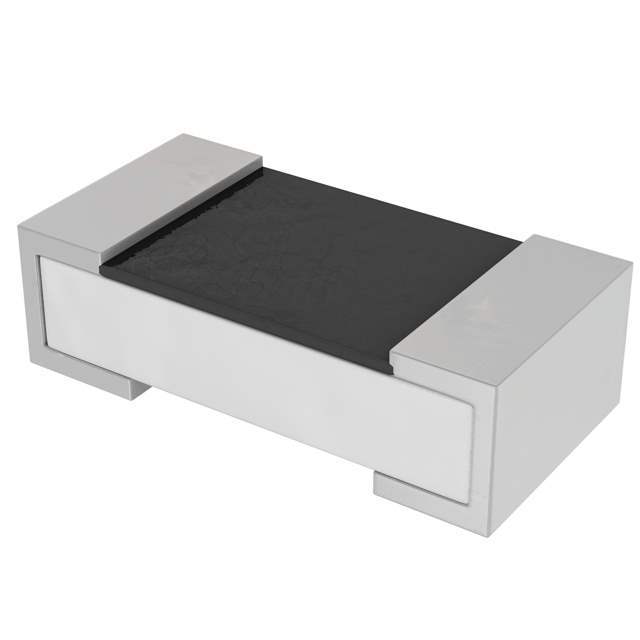

Same model may have multiple batches, images only for reference.

RC0100JR-07160RL

Part No RC0100JR-07160RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 160 OHM 5% 1/32W 01005
Datasheet
RC0100JR-07160RL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer YAGEO
Category Resistors Chip Resistor - Surface Mount
Packaging  Tape & Reel (TR)
Part Status Active
Resistance 160 Ohms
Tolerance ±5%
Power (Watts) 0.03W, 1/32W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Operating Temperature -55°C ~ 125°C
Package / Case 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Win Source Part Number WS1309561-RC0100JR-07160RL
Ultra Librarian 3D Model Ultra Librarian RC0100JR-07160RL CAD Model

Description

160 Ohms ±5% 0.03W, 1/32W Chip Resistor 01005 (0402 Metric) Moisture Resistant Thick Film
