Same model may have multiple batches, images only for reference.

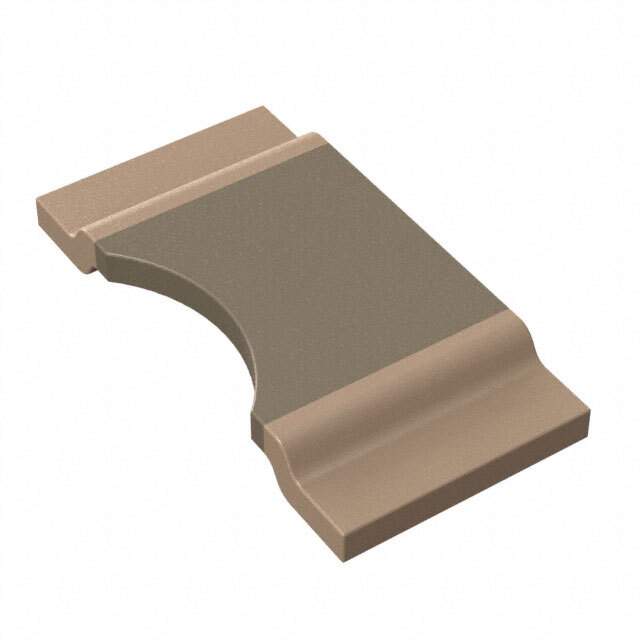

PU2512FKM130R005L Real Image
Same model may have multiple batches, images only for reference.

PU2512FKM130R005L

Part No PU2512FKM130R005L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 4W 2512 / 5 mOhms ±1% 4W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Yageo
Packaging Reel - TR
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.037" (0.94mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number YAG6124TR,YAG6124CT,YAG6124DKR
Standard Package 4,000
Win Source Part Number 1326260-PU2512FKM130R005L
Ultra Librarian 3D Model Ultra Librarian PU2512FKM130R005L CAD Model

Description

The Yageo PU2512FKM130R005L is a high-quality chip resistor electronic component that is suitable for use in various electronic devices.

  • Resistance: 5 mOhms
  • Power Rating: 4W
  • Tolerance: ±1%
  • Automotive: AEC-Q200
  • Current Sense: Yes
  • Moisture Resistance: Yes
  • Packaging: reel - TR
  • Standard Package: 4,000
  • Temperature Coefficient: ±75ppm/°C
  • AEC-Q200: Yes
