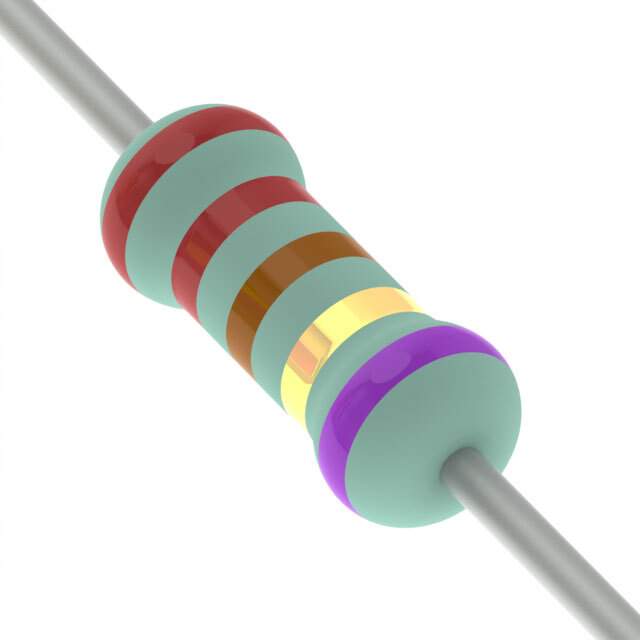

PNP5WVJT-73-220R Real Image
Same model may have multiple batches, images only for reference.

PNP5WVJT-73-220R

Part No PNP5WVJT-73-220R
Manufacturer Yageo
Catalog Through Hole Resistors
Description RES 220 OHM 5% 5W AXIAL  /  220 Ohms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr YAGEO
Series PNPV
Package Cut Tape (CT),Tape & Box (TB)
Resistance 220 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Retardant Coating, Safety
Temperature Range - Operating -40°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.295" Dia x 0.669" L (7.50mm x 17.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Names YAG5994TB,PNP5WVJT-73-220R-ND,YAG5994CT
Standard Package 250
Win Source Part Number 1165349-PNP5WVJT-73-220R
Ultra Librarian 3D Model Ultra Librarian PNP5WVJT-73-220R CAD Model

Description

The PNP5WVJT-73-220R from YAGEO is a 5W wirewound resistor with a resistance of 220 Ohms.

  • Tolerance: ±5%
  • Series: PNPV
  • Package: Cut tape (CT) and tape & box (TB)
  • Height - Seated (Max): Not specified
  • Standard Package: 250 resistors
  • Operating Temperature: -40°C ~ 200°C
  • Dimension: 0.295" Dia x 0.669" L (7.50mm x 17.00mm)
