Same model may have multiple batches, images only for reference.

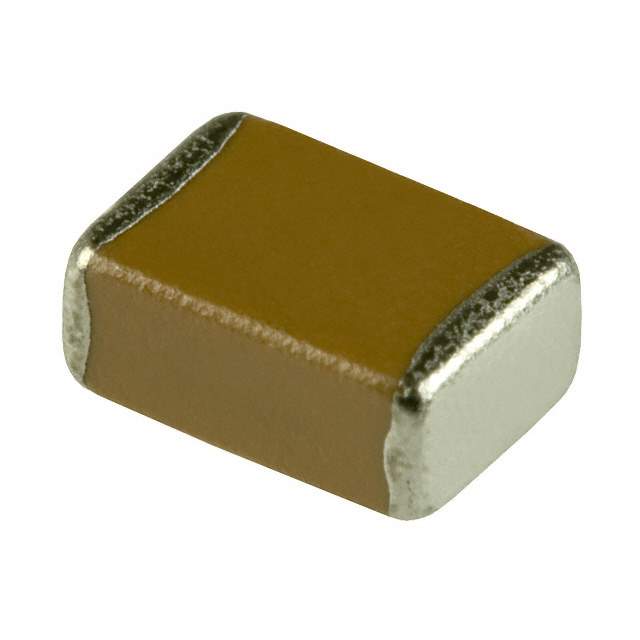

CC1812KKX7REBB102 Real Image
Same model may have multiple batches, images only for reference.

CC1812KKX7REBB102

Part No CC1812KKX7REBB102
Manufacturer Yageo
Catalog Ceramic Capacitors
Description CAP CER 1000PF 3KV X7R 1812 / 1000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1812 (4532 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Yageo
Packaging Reel - TR
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.071" (1.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number CC1812KKX7REBB102-ND,311-4568-6,311-4568-1,311-4568-2
Standard Package 1,000
Win Source Part Number 1330610-CC1812KKX7REBB102
Ultra Librarian 3D Model Ultra Librarian CC1812KKX7REBB102 CAD Model

Description

The Yageo CC1812KKX7REBB102 is a high voltage ceramic capacitor with a capacitance of 1000 pF and a voltage rating of 3000V.

  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Mounting: Surface Mountable
  • Package: 1812 (4532 metric)
  • Applications: General-purpose
  • Standard Package: 1000 units
  • RoHS3 Compliant: Yes
  • REACH Regulations: Unaffected
