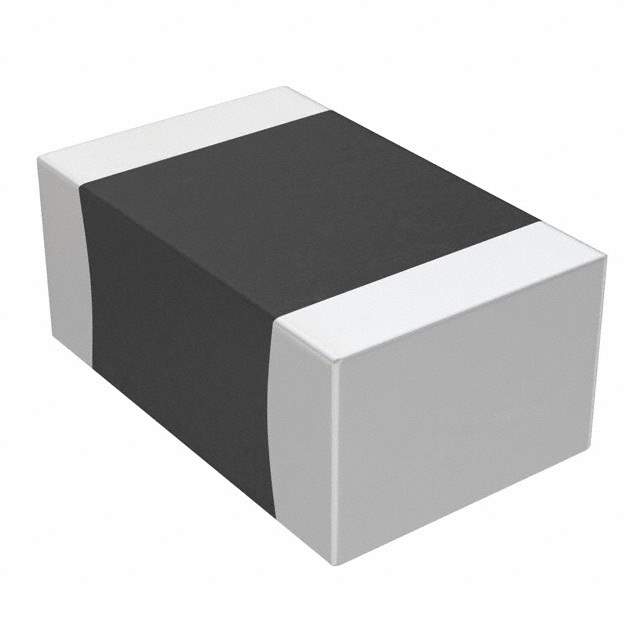

The CC0805JRNP09BN102 is a ceramic capacitor manufactured by Yageo. It is a surface mount (SMD) capacitor, identified by its 0805 case size. This capacitor is commonly used in a wide range of electronic circuits for decoupling, bypassing, filtering, and energy storage applications. The 'JRNP09BN102' portion of the part number provides further details about its specific characteristics.

Applications

• Decoupling Capacitors in Digital Circuits
• Bypass Capacitors in Analog Circuits
• Filtering in Power Supplies
• Timing Circuits
• Energy Storage

Features

• Ceramic Dielectric: Uses a ceramic material as the dielectric, providing high capacitance stability and low ESR (Equivalent Series Resistance).
• SMD Package: Surface mount design allows for automated assembly and compact circuit layouts.
• 0805 Case Size: Standard 0805 package size (0.08 inch x 0.05 inch).
• Capacitance Value: 1000 pF (102 indicates 10 x 10^2 pF).
• Voltage Rating: 9V DC Voltage Rating.
• Tolerance: J tolerance (+/- 5%).
• Temperature Coefficient: NPO/CG Temperature Characteristics (high stability over temperature).

Benefits

• High Stability: NPO/CG dielectric provides excellent capacitance stability over temperature and voltage.
• Low ESR: Low Equivalent Series Resistance minimizes power losses and improves circuit efficiency.
• Compact Size: 0805 package size allows for high-density circuit designs.
• Reliable Performance: Ceramic capacitors are known for their high reliability and long lifespan.
• Easy Assembly: SMD package simplifies assembly and allows for automated manufacturing.
• Cost-Effective: Ceramic capacitors offer a cost-effective solution for various applications.

The CC0805JRNP09BN102 is widely used in consumer electronics, industrial equipment, and automotive applications. Its small size, high stability, and reliable performance make it a suitable choice for demanding circuit designs. Care should be taken to avoid exceeding the specified voltage and temperature ratings. Proper soldering techniques are essential for reliable operation.
