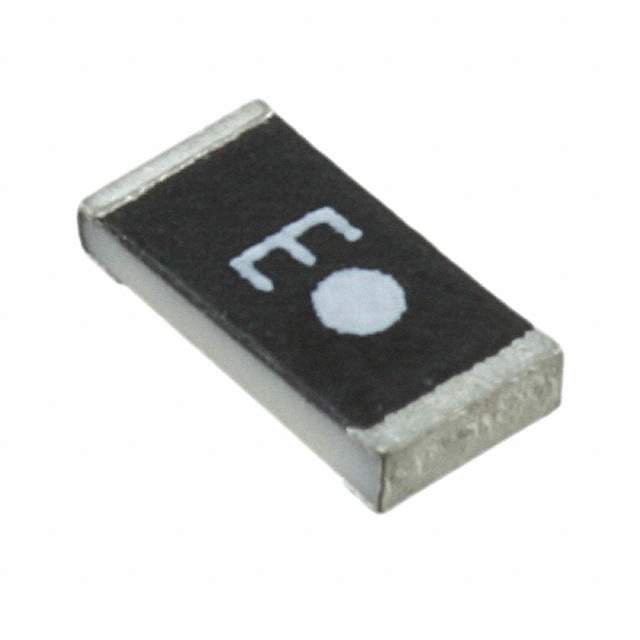

ANT3216A063R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT3216A063R2400A

Part No ANT3216A063R2400A
Manufacturer Yageo
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / Ceramic Chip Antenna
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Yageo
Packaging Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.335GHz ~ 2.565GHz
Antenna Type Chip
Number of Bands 1
Return Loss -10dB
Gain 1.69dBi
Power - Max 1W
Termination Solder
Mounting Style SMD
Height (Maximum) 0.55mm
Applications Bluetooth, WLAN, Zigbee
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802626-ANT3216A063R2400A
Ultra Librarian 3D Model Ultra Librarian ANT3216A063R2400A CAD Model

Description

The Yageo ANT3216A063R2400A is a chip antenna.

  • Frequency Range: 2.335GHz to 2.565GHz
  • Maximum Power: 1W
  • Gain: 1.69dBi
