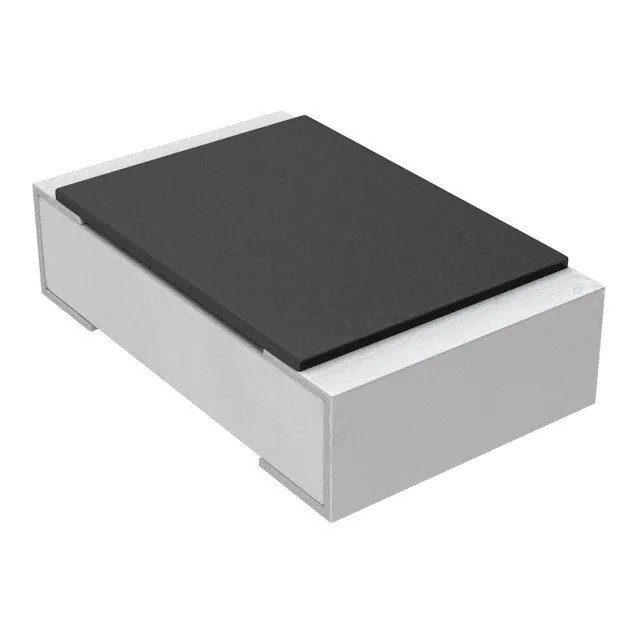

AC0805FR-0720KL

Part No AC0805FR-0720KL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 20K OHM 1% 1/8W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series AC
Package Tape & Reel
Product Status Active
Resistance 20 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1373732-AC0805FR-0720KL
Ultra Librarian 3D Model Ultra Librarian AC0805FR-0720KL CAD Model

Description

The YAGEO AC0805FR-0720KL is a chip resistor designed for surface mount applications.

  • Resistance: 20 kOhms
  • Tolerance: ±1%
  • Composition: Thick Film
  • Features: Automotive AEC-Q200 Compliant, Moisture Resistant
  • Power Rating: 0.125W (1/8W)
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Seated Height (Max): 0.024" (0.60mm)
  • Series: AC
  • Package: Tape & Reel
  • Temperature Range: -55°C to 155°C
  • REACH: Not Affected
