Same model may have multiple batches, images only for reference.

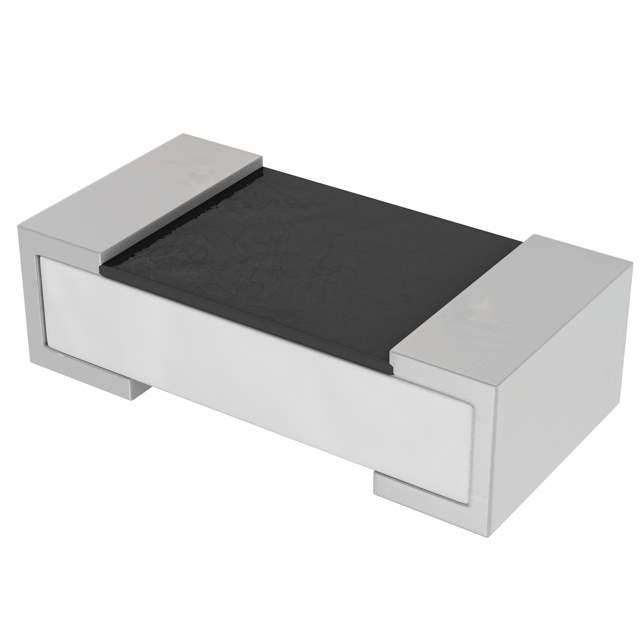

AA0603FR-075M11L Real Image
Same model may have multiple batches, images only for reference.

AA0603FR-075M11L

Part No AA0603FR-075M11L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 5.11M OHM 1% 1/10W 0603 / 5.11 MOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series AA
Package Tape & Reel
Resistance 5.11 MOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337203-AA0603FR-075M11L
Ultra Librarian 3D Model Ultra Librarian AA0603FR-075M11L CAD Model

Description

The AA0603FR-075M11L is a chip resistor from YAGEO.

  • Resistance: 5.11 MOhms
  • Tolerance: ±1%
  • Power (Watts): 0.1W
  • Composition: Thick Film
  • Features: Anti-Sulfur, Moisture Resistant
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C ~ 155°C
  • Package / Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Ratings: AEC-Q200
  • Size / Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Height - Seated (Max): -
  • Number of Terminations: 2
  • Failure Rate: -
