Same model may have multiple batches, images only for reference.

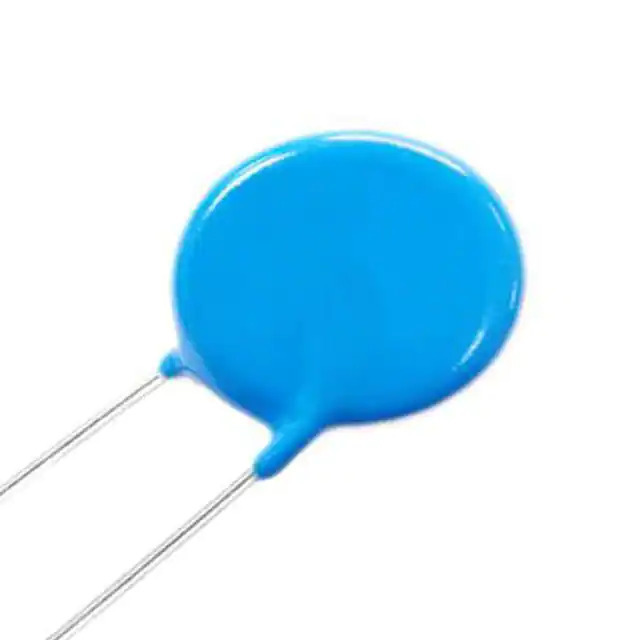

561KD20 Yageo
Same model may have multiple batches, images only for reference.

561KD20

Part No 561KD20
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 560 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Datasheet
561KD20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 20D
Package Bulk
Product Status Active
Maximum AC Volts 350 V
Maximum DC Volts 460 V
Varistor Voltage (Min) 504 V
Varistor Voltage (Typ) 560 V
Varistor Voltage (Max) 616 V
Current - Surge 10 kA
Energy 380J
Number of Circuits 1
Capacitance @ Frequency 710 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Features -
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1361067-561KD20
Ultra Librarian 3D Model Ultra Librarian 561KD20 CAD Model

Description

The YAGEO 1361067-561KD20 is a circuit protection component in the form of a transient voltage suppressor (TVS) varistor.

  • Series: 20D
  • Mounting Type: Through-Hole
  • Package: Disc 20mm
  • Operating Temperature Range: -40°C to 105°C
  • Varistor Voltage Range: 504V to 616V
  • Typical Varistor Voltage: 560V
  • Maximum AC Voltage: 350V
  • Maximum DC Voltage: 460V
  • Surge Current Rating: 10kA
  • Energy Rating: 380J
  • Capacitance: 710pF @ 1kHz
