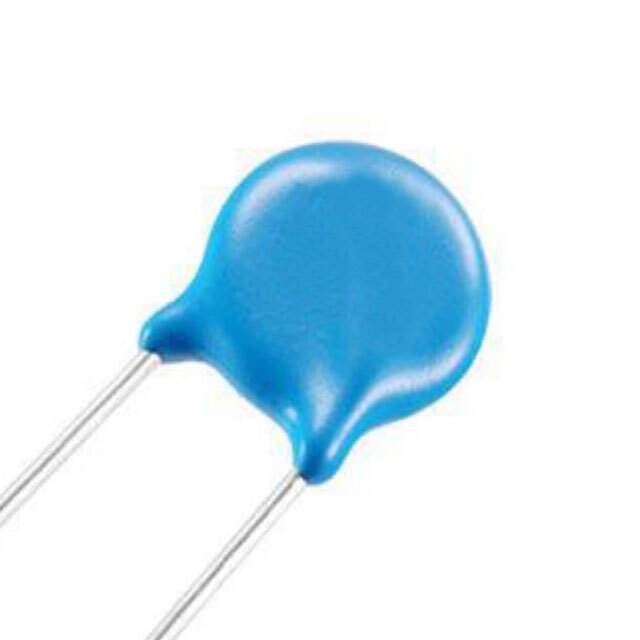

561KD10J Real Image
Same model may have multiple batches, images only for reference.

561KD10J

Part No 561KD10J
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 560 V 3.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Datasheet
561KD10J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 350 V
Maximum DC Volts 460 V
Varistor Voltage (Min) 504 V
Varistor Voltage (Typ) 560 V
Varistor Voltage (Max) 616 V
Current - Surge 3.5 kA
Energy 70J
Number of Circuits 1
Capacitance @ Frequency 180 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 10mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-561KD10J
Standard Package 500
Win Source Part Number 1334772-561KD10J
Ultra Librarian 3D Model Ultra Librarian 561KD10J CAD Model

Description

The 561KD10J is a TVS varistor manufactured by Yageo.

  • Capacitance: 180 pF @ 1 kHz
  • Varistor Voltage: 560V
  • Supply and Demand Status: Unlimited
  • Maximum AC Voltage: 350V
  • Maximum DC Voltage: 460V
  • Operating Temperature Range: -40°C to 105°C
