Same model may have multiple batches, images only for reference.

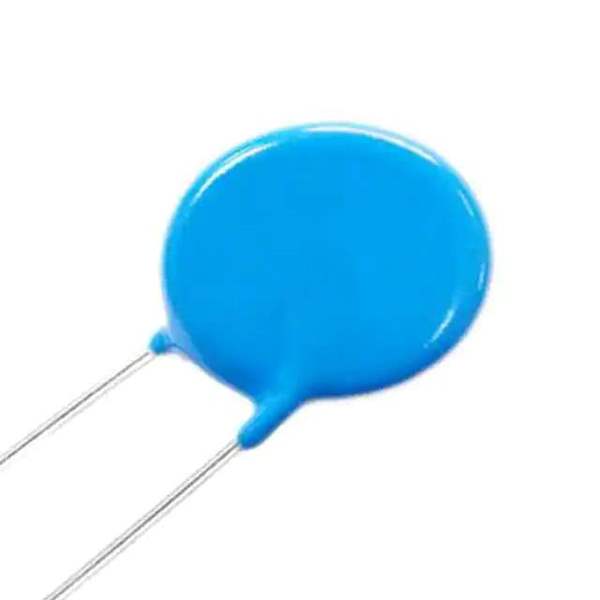

102KD20 Real Image
Same model may have multiple batches, images only for reference.

102KD20

Part No 102KD20
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV
Datasheet
102KD20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr YAGEO
Series 20D
Package Bulk
Product Status Active
Maximum AC Volts 625 V
Maximum DC Volts 825 V
Varistor Voltage (Min) 900 V
Varistor Voltage (Typ) 1 kV
Varistor Voltage (Max) 1.1 kV
Current - Surge 10 kA
Energy 565J
Number of Circuits 1
Capacitance @ Frequency 400 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 20mm
Standard Package 150 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 905039-102KD20
Ultra Librarian 3D Model Ultra Librarian 102KD20 CAD Model

Description

The 905039-102KD20 is a transient voltage suppressor (TVS) varistor designed for circuit protection.

  • Series: 20D
  • Mounting Type: Through-Hole
  • Capacitance: 400pF @ 1 kHz
  • Varistor Voltage: 900V to 1.1kV
  • Surge Current: 10kA
  • Max AC Voltage: 625V
  • Max DC Voltage: 825V
  • Energy Rating: 565J
  • Package: Bulk
  • Standard Package Size: 150 pcs
  • Temperature Range: -40°C to 105°C (TA)
  • Product Status: Active
  • Manufacturer: YAGEO
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.40.4000
