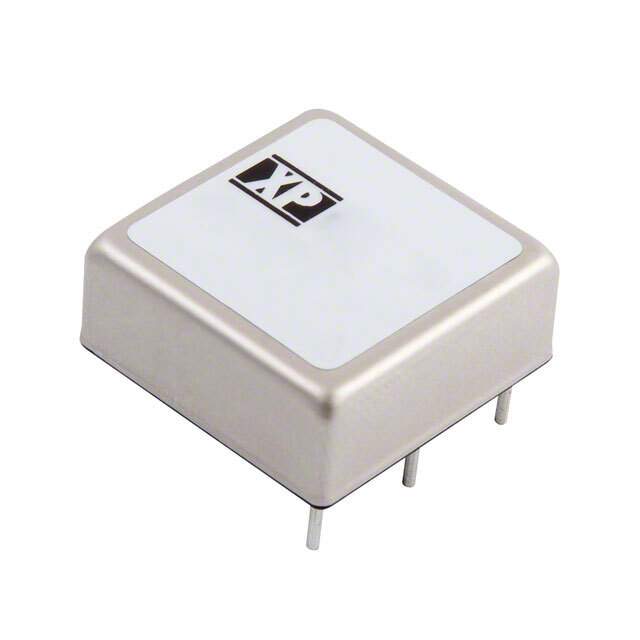

Same model may have multiple batches, images only for reference.

JTK2024S05

Name: JTK2024S05
Brand: XP Power
SKU: 1351075
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTK2024S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Datasheet	JTK2024S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTK (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	89%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTK2024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351075-JTK2024S05
Ultra Librarian 3D Model	Ultra Librarian JTK2024S05 CAD Model

Alternative Products

Description

The XP Power 1166354 is a 20W isolated module that is designed for use in ITE (commercial) applications.

Series: JTK (20W)
Application: ITE (Commercial)
Features: Remote On/Off, OCP, OVP, SCP
Package: Tube
Size/Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Number of Outputs: Single
Voltage Isolation: 1.6 kV
Maximum Output Current: 4A
Input Voltage: 9V to 36V
Output Voltage: 5V
Efficiency: 89%
Mounting Type: Through-Hole
MSL Level: 1 (Unlimited)
ECCN: EAR99
HTSUS: 8504.40.9580
Standard: 62368-1
