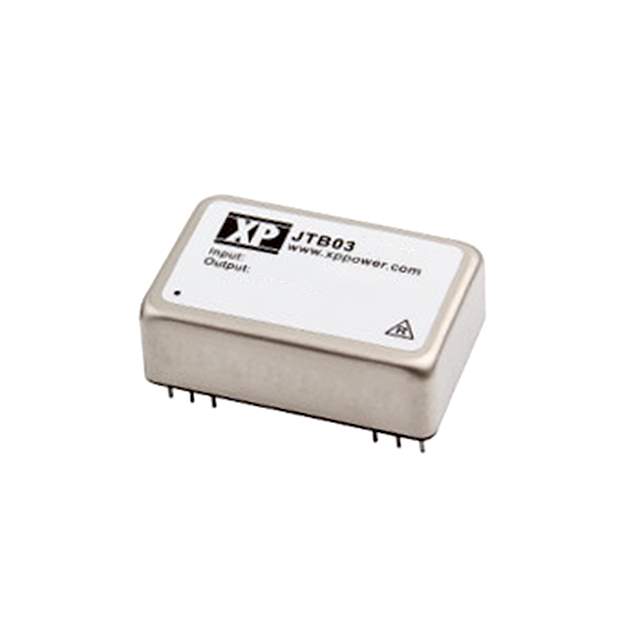

Same model may have multiple batches, images only for reference.

JTB0348D05

Name: JTB0348D05
Brand: XP Power
SKU: 1338012
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JTB0348D05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 18V - 72V Input
Datasheet	JTB0348D05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTB03 (3W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	72V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-25°C ~ 100°C (With Derating)
Efficiency	71%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 14 Leads
Size / Dimension	1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	JTB0348
Standard Package	10
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338012-JTB0348D05
Ultra Librarian 3D Model	Ultra Librarian JTB0348D05 CAD Model

Alternative Products

Description

The JTB0348D05 is a 3W isolated module power supply designed for use in ITE (Commercial) applications. JTB0348D05.

Applications: ITE (Commercial)
Voltage - Isolation: 1.5 kV
Features: Overcurrent Protection, Short Circuit Protection
Package: Bulk
Size / Dimension: 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm)
Series: JTB03 (3W)
Standard Package: 10
Number of Outputs: 2
Current - Output (Max): 300mA per output
Voltage - Input: 18V ~ 72V
Voltage - Output 1: 5V
Voltage - Output 2: -5V
Efficiency: 71%
Mounting Type: Through Hole
Package / Case: 24-DIP Module, 14 Leads
Operating Temperature: -25°C ~ 100°C (With Derating)
