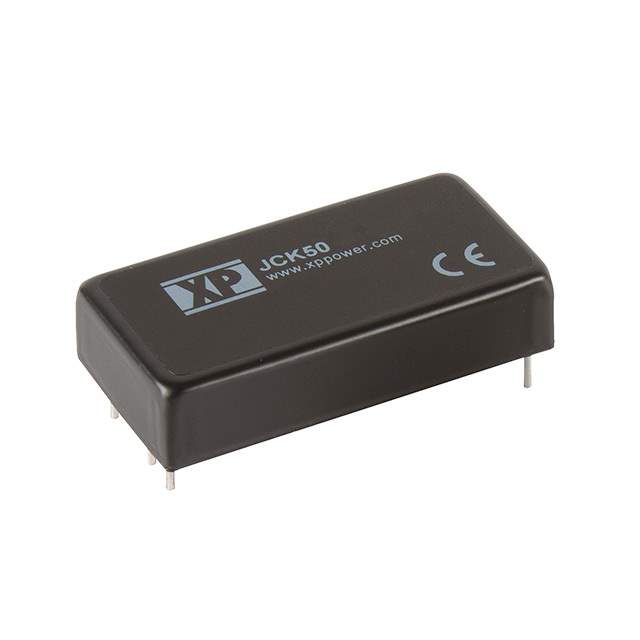

JCK5012S12 Real Image
Same model may have multiple batches, images only for reference.

JCK5012S12

Part No JCK5012S12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 50W / Isolated Module DC DC Converter 1 Output 12V 4.17A 9V - 18V Input
Datasheet
JCK5012S12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr XP Power
Series JCK50 (50W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Current - Output (Max) 4.17A
Power (Watts) 50 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 95°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm)
Supplier Device Package 6-DIP
Standard Number 62368-1
Base Product Number JCK5012
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1470-4236
Standard Package 10
Win Source Part Number 1174494-JCK5012S12
Ultra Librarian 3D Model Ultra Librarian JCK5012S12 CAD Model

Description

The JCK5012S12 is a DC-DC converter electronic component manufactured by XP Power. The XP Power JCK5012S12 is a DC-DC converter.

  • Win Source Part Number: 1174494-JCK5012S12
  • Type: Isolated Module
  • Power Output: 50W
  • Efficiency: 89%
  • Features: Remote On/Off, Overcurrent Protection
  • Supply and Demand Status: Limited
