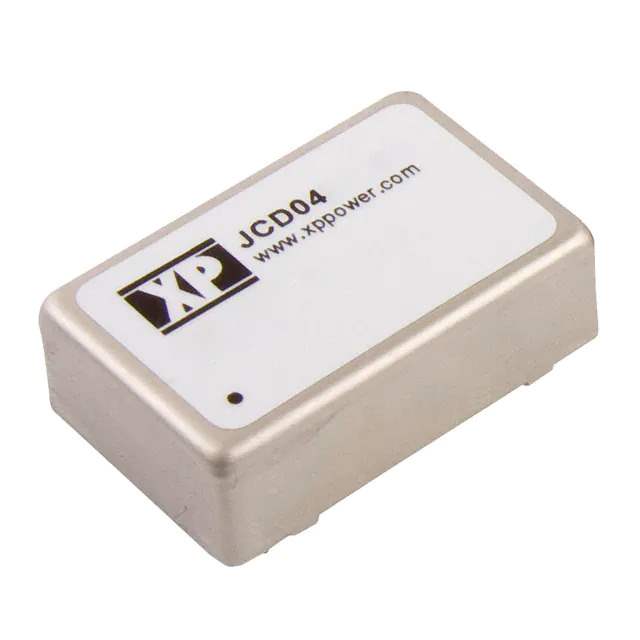

Same model may have multiple batches, images only for reference.

JCD0424S09

Name: JCD0424S09
Brand: XP Power
SKU: 876188
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JCD0424S09
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 9V 4W
Datasheet	JCD0424S09 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCD (4W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	9V
Current - Output (Max)	444mA
Power (Watts)	4 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number	62368-1
Base Product Number	JCD0424
Standard Package	10 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876188-JCD0424S09
Ultra Librarian 3D Model	Ultra Librarian JCD0424S09 CAD Model

Alternative Products

Description

The JCD (4W) series is an isolated module DC-DC converter with a power rating of 4W.

Manufacturer: XP Power
Product Name: JCD (4W) series
Power Rating: 4W
Size: 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Application: ITE (Commercial)
Voltage Isolation: 1.6 kV
Output Voltage: 9V
Maximum Output Current: 444mA
Input Voltage Range: 18V to 36V
Protection: Overcurrent Protection (OCP), Overvoltage Protection (OVP), and Short Circuit Protection (SCP)
Efficiency: 82%
Mounting: Through-hole
Status: Active
