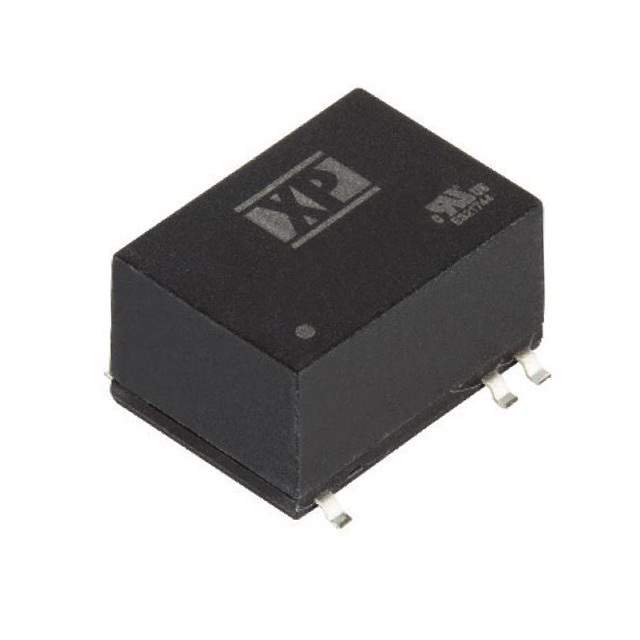

Same model may have multiple batches, images only for reference.

ISM0112S12

Name: ISM0112S12
Brand: XP Power
SKU: 1338635
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ISM0112S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
Datasheet	ISM0112S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	ISM01 (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	12V
Current - Output (Max)	84mA
Power (Watts)	1 W
Voltage - Isolation	4 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 95°C (With Derating)
Efficiency	79%
Mounting Type	Surface Mount
Package / Case	14-SMD Module, 6 Leads
Size / Dimension	0.74" L x 0.54" W x 0.41" H (18.9mm x 13.7mm x 10.5mm)
Base Product Number	ISM0112
Standard Package	10
MSL Level	2 (1 Year)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338635-ISM0112S12
Ultra Librarian 3D Model	Ultra Librarian ISM0112S12 CAD Model

Alternative Products

Description

The XP Power 1338635-ISM0112S12 is a 1W isolated module power supply that is designed for use in medical applications.

Power: 1W
Voltage Input: 10.8V to 13.2V
Voltage Output: 12V
Current Output: 84mA
Package: 14-SMD Module, 6 Leads
Size: 0.74" L x 0.54" W x 0.41" H (18.9mm x 13.7mm x 10.5mm)
Efficiency: 79%
Voltage Isolation: 4 kV
Operating Temperature: -40°C to 95°C (With Derating)
