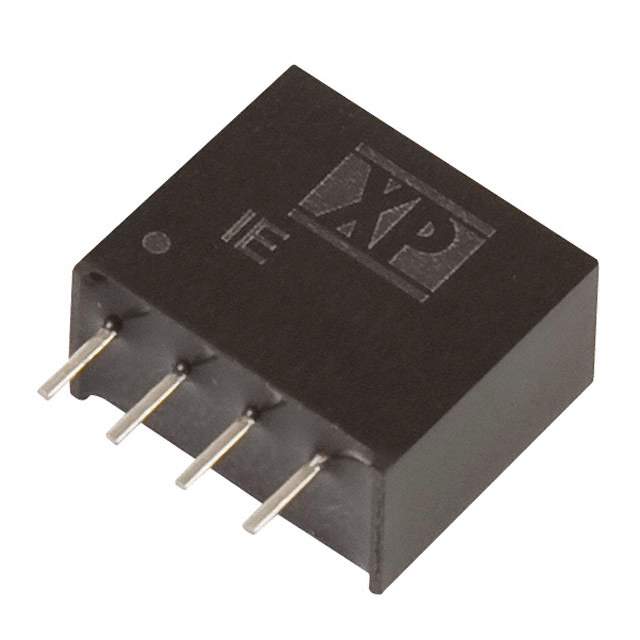

Same model may have multiple batches, images only for reference.

IE0505S

Name: IE0505S
Brand: XP Power
SKU: 1335161
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IE0505S
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet	IE0505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	XP Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	75%
Mounting	Through Hole
Case / Package	4-SIP Module
Size / Dimension	0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm)
Base Product Number	IE0505
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1470-1397-5
Standard Package	40
Win Source Part Number	1335161-IE0505S
Ultra Librarian 3D Model	Ultra Librarian IE0505S CAD Model

Alternative Products

Description

The XP Power IE0505S is an isolated module type DC DC converter that comes in a 4-SIP module case/package.

Size: 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm)
Application: ITE (Commercial)
Power: 1 W
Voltage Isolation: 1 kV
Number of Outputs: 1
Current Output (Max): 200mA
Voltage Input: 4.5V to 5.5V
Voltage Output: 5V
Efficiency: 75%
Temperature Range: -40°C to 85°C
Popularity: Medium
