Same model may have multiple batches, images only for reference.

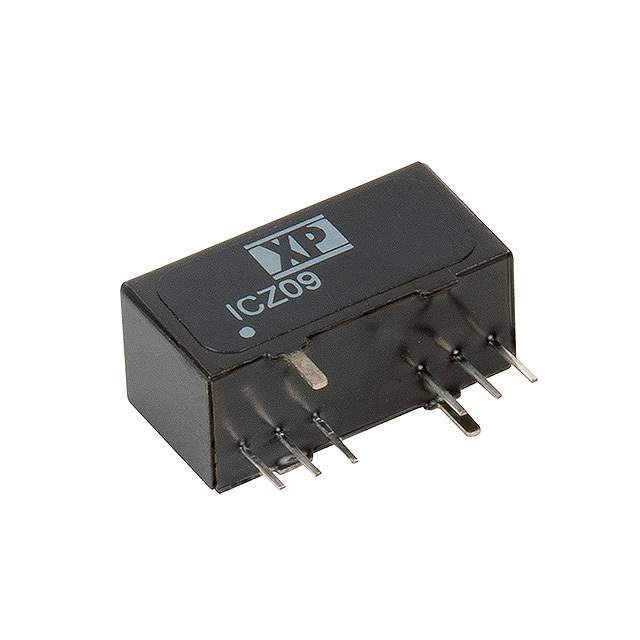

ICZ0924D12 Real Image
Same model may have multiple batches, images only for reference.

ICZ0924D12

Part No ICZ0924D12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 9W / Isolated Module DC DC Converter 2 Output 12V -12V 375mA, 375mA 18V - 36V Input
Datasheet
ICZ0924D12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series ICZ (9W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 375mA, 375mA
Power (Watts) 9 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 12-SIP Module, 6 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Supplier Device Package 12-SIP
Standard Number 62368-1
Base Product Number ICZ0924
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337776-ICZ0924D12
Ultra Librarian 3D Model Ultra Librarian ICZ0924D12 CAD Model

Description

The XP Power ICZ0924D12 is a DC DC converter that is ideal for power supply board mount applications.

  • Series: ICZ (9W)
  • Type: Isolated Module
  • Features: Remote On/Off, OCP, SCP, UVLO
  • Package: Tube
  • Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Applications: ITE (Commercial)
  • Standard Package: 20
  • Power (Watts): 9W
  • Voltage - Isolation: 1.6 kV
  • Number of Outputs: 2
  • Current - Output (Max): 375mA, 375mA
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Voltage - Output 3: None
  • Efficiency: 89%
  • Mounting Type: Through Hole
  • Package / Case: 12-SIP Module, 6 Leads
  • Supplier Device Package: 12-SIP
  • Temperature Range: -40°C to 85°C (With Derating)
  • MSL: 1 (Unlimited)
  • HTSUS: 8504.40.9580
